Gryphon Diablo 300 DAC Module

Description

Overview

This is the optional internal digital-to-analogue converter module for the Gryphon Diablo 300 integrated amplifier. It draws heavily on the engineering behind Gryphon’s acclaimed standalone Kalliope DAC, bringing reference-class digital conversion inside the Diablo 300 itself — so a single chassis handles source, preamplification and power without adding another box or another set of interconnects to the system.

Design & build

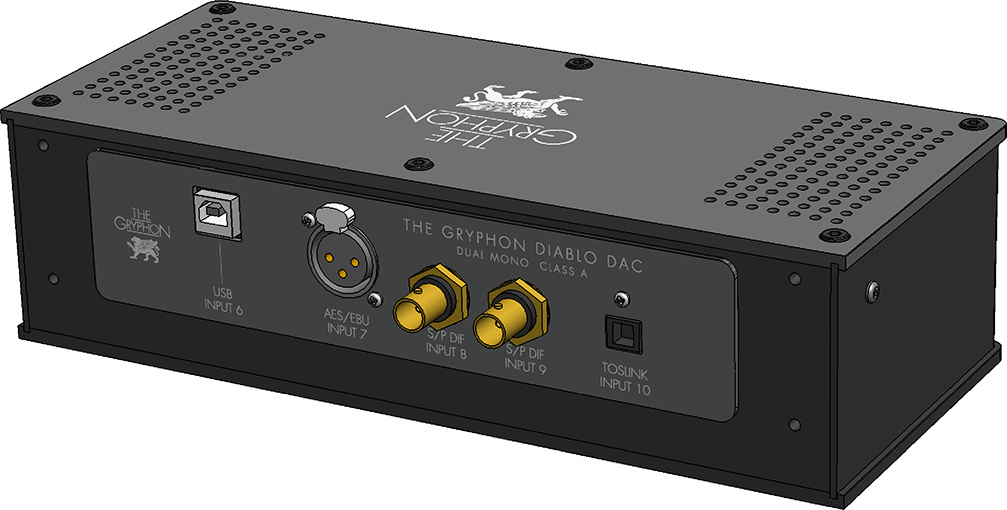

The module is fully isolated inside its own independent aluminium housing with grounded panels, engineered to be impervious to high-frequency radiation so it cannot interfere with the amplifier stages or with the optional Gryphon phono module. This shielded, self-contained construction is characteristic of Gryphon’s approach: keep the sensitive digital circuitry electrically and physically separate, even when it lives inside the same case.

Sound & performance

At the heart of the module is the ESS Sabre ES9018 DAC chip, partnered with heavily regulated, fully discrete, ultra-low-noise plus/minus 22VDC supplies for low noise and minimal analogue distortion. A discrete, separate left and right ultra-low-noise supply feeds the analogue section of the DAC, in keeping with the dual-mono thinking that runs through Gryphon’s electronics, for a clean and dynamic presentation.

Key features

The module takes its digital feeds from a full set of inputs: a balanced 110-ohm AES input on a Swiss Neutrik XLR, two S/PDIF inputs on gold-plated 75-ohm BNC sockets with Teflon insulation, a TOSLINK optical input, and a single USB input. For PCM sources it offers a choice of fast or slow roll-off digital filters; for DSD, selectable 50, 60 or 70kHz bandpass filtering.

Technology

A defining feature is that the module draws no power from the connected USB source, generating its own clean supply instead. A 12.5-Farad SuperCap dedicated power supply acts as a stable, isolated virtual battery, removing the computer as a power source entirely for a very low noise floor and unrestricted dynamics — addressing one of the common weak points of USB DAC designs.

Specifications

Type: optional internal DAC module for the Gryphon Diablo 300. Converter: ESS Sabre ES9018. USB input: PCM to 32-bit / 384kHz and DSD512; other inputs to 24-bit / 192kHz PCM. Inputs: AES/EBU (110-ohm XLR), 2 × S/PDIF (75-ohm BNC), TOSLINK optical, USB. Digital filters: fast/slow roll-off for PCM; 50/60/70kHz bandpass for DSD. Power: discrete, fully isolated plus/minus 22VDC supplies; 12.5F SuperCap USB isolation; separate left/right analogue supplies. Housing: independent grounded aluminium enclosure.

Who it’s for

The DAC module suits the Diablo 300 owner who wants a single-chassis system — streamer or computer straight into the amplifier — without sacrificing the quality of a serious standalone converter. It is the natural way to make the Diablo 300 a complete digital hub.
