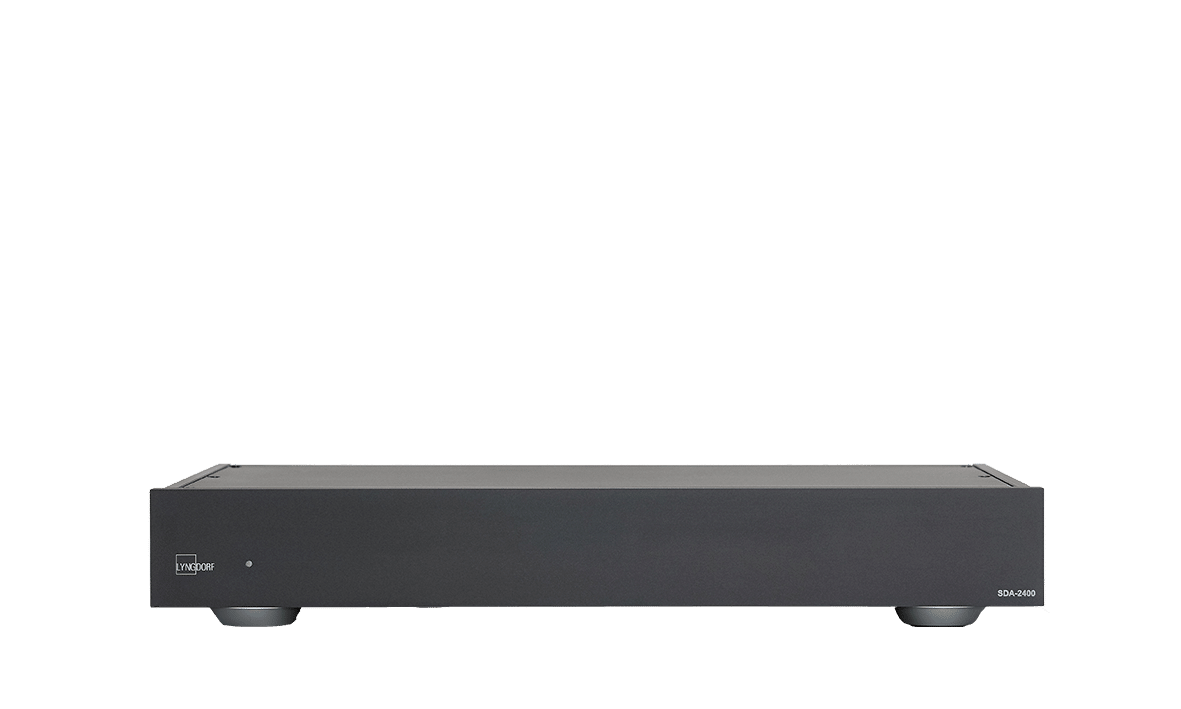

Lyngdorf SDA-2400, Incl. Trigger Cable & Rack Mount, 4 RU

Description

Overview

The SDA-2400 is Lyngdorf’s stereo power amplifier — a compact, quietly capable engine for high-end two-channel systems and multichannel cinemas alike. This version comes ready for installation, supplied with its trigger cable and rack-mounting hardware.

Design & build

Lyngdorf builds the SDA-2400 for working installations: a slim chassis designed to rack cleanly, run cool and stay out of the way. There is no unnecessary furniture here — the money is in the output stage.

Sound & performance

Power delivery is 2 × 200 watts into 8 ohms, doubling to 2 × 400 watts into 4 ohms — the hallmark of a genuinely stiff power supply that keeps its grip as loudspeaker impedance falls. Distortion is very low and, importantly, linear in character, with a signal-to-noise ratio to match; the amplifier simply does not editorialise.

Key features

Connectivity covers both analogue and digital sources directly: single-ended RCA and balanced XLR analogue inputs sit alongside coaxial (up to 192kHz/24-bit) and optical (up to 96kHz/24-bit) digital inputs. Trigger connection and automatic signal-sensing mean it powers up when the system does and drops to standby when not in use.

Technology

The output stage uses pulse width modulation with Lyngdorf’s patented switch-speed optimisation, running at a fixed 390kHz switching frequency with minimal feedback control. It is the same design philosophy that runs through Lyngdorf’s digital amplification: efficiency without the usual class-D compromises, and control without heavy-handed correction.

Specifications

Type: stereo power amplifier. Output: 2 × 200W @ 8 ohms; 2 × 400W @ 4 ohms. Output stage: PWM, fixed 390kHz switching, patented switch-speed optimisation, minimal feedback. Inputs: 1 × RCA single-ended, 1 × balanced XLR, 1 × coaxial digital (≤192kHz/24-bit), 1 × optical digital (≤96kHz/24-bit). Auto standby with signal-sense wake. Supplied with trigger cable and rack-mount hardware.

Who it’s for

Partner it with a Lyngdorf processor in a multichannel cinema — one SDA-2400 per pair of channels — or use it to drive demanding loudspeakers in a high-quality stereo system. Anywhere clean, unfussy power is needed in a rack, this is the tool.

Why buy from Hidden Home Technology

Amplification only performs when it’s matched to the loudspeakers and the room. We design and install Lyngdorf systems across Bath, Bristol and the South, and can demonstrate the SDA-2400 in context at our Basingstoke showroom. Speak to our team to confirm system matching and current pricing.
