Power Amplifiers
McIntosh MI1250
£5,890.00
McIntosh MI1250 12-Channel Digital Amplifier
⋅ Ideal for multi-zone distributed audio
⋅ 50 Watts into 8 Ohms
⋅ 90 Watts into 4 Ohms
⋅ 2U rack mountable
⋅ Channel summing circuits for mono signal distribution
⋅ Volume controls for each channel
⋅ Bussable inputs
⋅ Signal sensing
⋅ Power Guard® and Sentry Monitor™
Delivers pristine music playback to multiple rooms for whole house audio.
Description
Description
McIntosh MI1250 12-Channel Digital Amplifier
The versatile MI1250 12-Channel Digital Amplifier can distribute pristine music playback to multiple rooms in your home. It delivers 50 Watts into 8 Ohm speakers or 90 Watts into 4 Ohm speakers via highly sophisticated closed loop digital switching amplifiers that are paired with extremely robust power supplies to produce performance levels that are rarely achieved in distributed audio.
It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature.

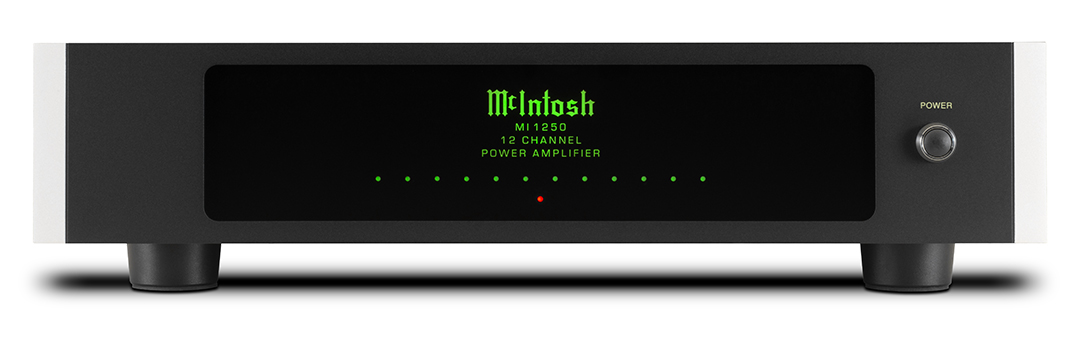

On the front panel, multi-color LED indicators display the status of each channel.

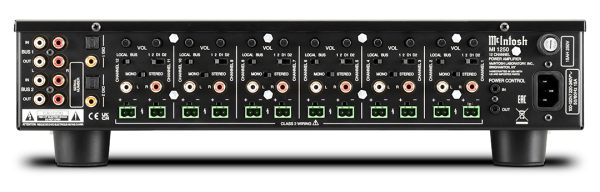

On the back are unbalanced inputs plus 2-pole Phoenix style push-in speaker terminals for each channel. Also located on the back are volume controls for volume balancing, along with 2 digital audio inputs (either coax or optical) that can be bussed, and channel summing circuits for easy mono signal distribution.
Other features included on the MI1250 are:
⋅ Power Guard® signal overload technology that prevents overdriving the speakers.
⋅ Our Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal.
⋅ BUS input & outputs to easily distribute a stereo signal to multiple outputs and/or multiple amplifiers.
⋅ Individual channel inputs.
⋅ 12 Volt triggering capabilities to automatically turn other connected McIntosh components on and off.
⋅ Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal.
⋅ The MI1250 includes many McIntosh design cues including a black glass front panel housing an illuminated McIntosh logo, along with a familiar form factor that is highlighted with silver trim. Contact us to learn more about integrating the MI1250 into your custom whole house audio installation.
The Hidden Home view: McIntosh MI1250
The MI1250 is McIntosh’s twelve-channel amplifier for music in many rooms. Each channel delivers 50 watts into 8 ohms or 90 watts into 4 ohms, and all twelve sit in a case 2U high that needs no cooling fans.
It is built for installers. Every channel has its own input, push-in speaker terminals and a level control for balancing rooms. Two digital inputs, coaxial or optical, can be shared across channels. Summing circuits make it easy to send mono to rooms that need it. A bus lets one stereo signal feed several outputs or several amplifiers, and a 12 volt trigger turns other McIntosh units on and off with it.
So it suits a whole-house music system that needs many channels from one quiet box. We design distributed audio room by room and choose the amplification to match, so call us and we will plan yours.
Sources: McIntosh, “MI1250 12-Channel Power Amplifier”, the maker’s own page.
Specification
Power Output per Channel - 50 Watts into 8 Ohms, 90 Watts into 4 Ohms
Number of Channels - 12
Total Harmonic Distortion - 0.05%
S/N below rated output - 95dB
Dynamic Headroom - 8 Ohms: 2.1dB, 4 Ohms: 3.3dB
Damping Factor - 8 Ohms: >65, 4 Ohms: >32
Rated Power Band - 20Hz to 20kHz
Frequency Response, +0, -0.5dB from 20Hz to 20,000Hz
CONTROL
Remote Power Control - Yes
Multi-Channel DB25 Cable - N/A
CONNECTIVITY
Speaker Binding Post Type - 2-pole Phoenix style push-in speaker terminals
GENERAL SPECIFICATIONS
Circuit Configuration - Closed loop digital switching
Circuit Design - Digital
Mono Bridge - N/A
Mono Parallel - N/A
Output Type - Direct Coupled
Meters - No
Meter Light Switch - No
Balanced Input - 0
Front Panel - Glass with removable rack mounting ears
Illumination - Direct LED
Chassis Style - Black painted steel
BTU Rating - 900 BTU/h
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D) - 17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Unit Weight - 22 lbs (10 kg)
Shipping Weight - 38.4 lbs (17.4 kg)
