McIntosh MC901 1-Channel Dual Mono Amplifier

Description

Overview

The MC901 is one of the most ambitious amplifiers McIntosh has built for the home. It is a monoblock designed to drive a single loudspeaker, but with a difference: it combines a 300-watt vacuum-tube amplifier and a 600-watt solid-state amplifier on one unified chassis, so a single unit bi-amps one speaker. It draws on decades of McIntosh expertise in both valve and solid-state amplification.

Design & build

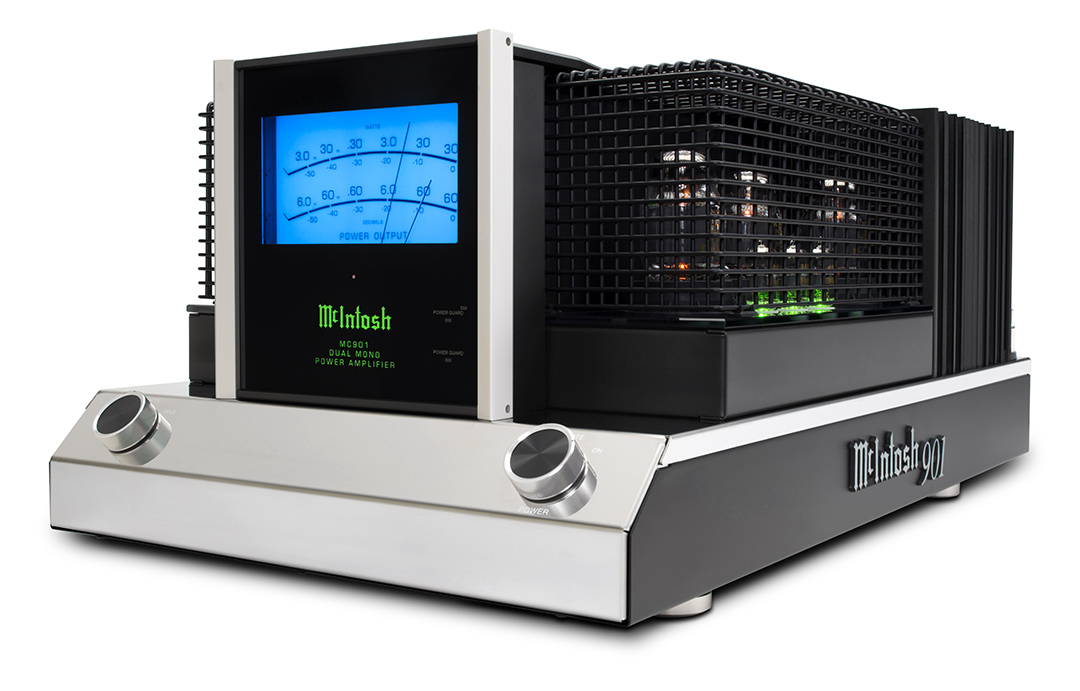

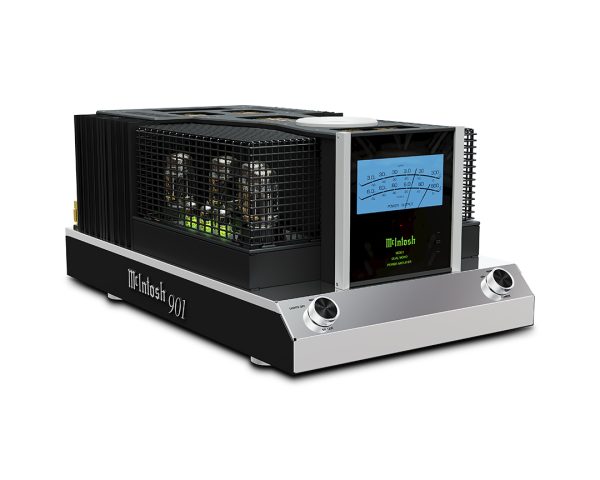

Visually the MC901 is unmistakably McIntosh: a black glass front panel with an illuminated logo, the DualView output meter, a polished stainless-steel chassis and aluminium detailing, with glass-printed circuit diagrams on the top panel. It is a substantial component, weighing 180 pounds (81.6kg) and measuring 44.5 × 34 × 75 cm, and one MC901 is required per loudspeaker.

Sound & performance

McIntosh Hybrid Drive technology assigns each amplifier section to the frequencies it handles best. The 300-watt valve section powers the midrange and high-frequency drivers, preserving harmonic richness and spatial realism, while the 600-watt solid-state section drives the power-hungry woofers with authority. Removing the low-frequency demand from the valves lets them operate in their optimal range, improving efficiency and musical performance.

Key features

The valve section uses eight KT88 output tubes with 12AT7 and 12AX7A signal tubes and McIntosh’s patented Unity Coupled Circuit output transformer, delivering its full 300 watts into 2-, 4- or 8-ohm loudspeakers. The solid-state section uses Autoformer technology to deliver its full 600 watts into any of those impedances. Each section has its own dedicated power supply so neither compromises the other.

Technology

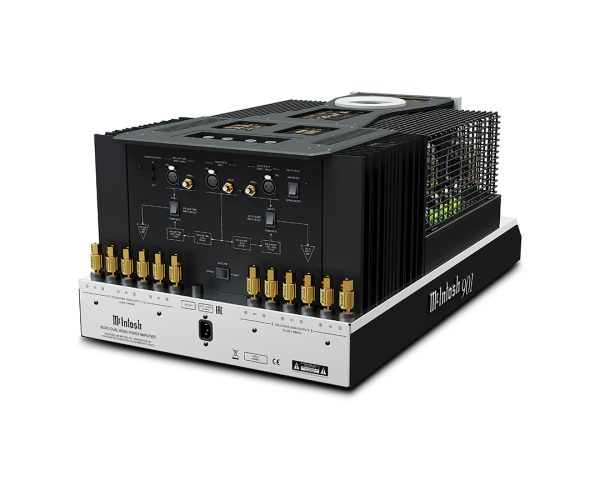

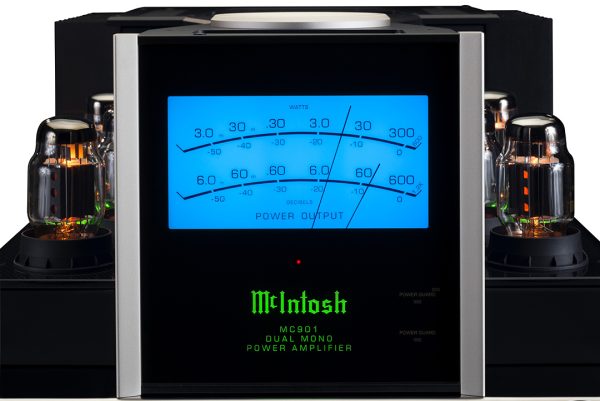

An internal adjustable crossover, with controls on the top panel and gain adjustment, matches the amplifier to the loudspeaker, and direct inputs allow it to be bypassed. The DualView Power Output Meter stacks two mechanical meters in one window, one per section. Comprehensive protection includes Power Guard against clipping, the Power Guard Screen Grid Sensor safeguarding the KT88 tubes, and fuse-less Sentry Monitor short-circuit protection.

Specifications

Type: dual-mono hybrid monoblock amplifier (one per loudspeaker). Valve section: 300W, eight KT88 output tubes, 12AT7/12AX7A signal tubes, Unity Coupled Circuit transformer, 2/4/8 ohms. Solid-state section: 600W, Autoformer, 2/4/8 ohms. Crossover: internal, adjustable, with gain adjustment. Metering: DualView dual mechanical meters. Protection: Power Guard, SGS, Sentry Monitor. Dimensions: 44.5 × 34 × 75 cm. Weight: 81.6kg.

Who it’s for

The MC901 is for the listener with bi-ampable, high-performance loudspeakers who wants the tonal beauty of valves on the midrange and treble and the grip of solid state on the bass, in a single, integrated solution. It suits a reference two-channel system where correct crossover setup and speaker matching can be carried out with care.

Why buy from Hidden Home Technology

Correct speaker matching, crossover setup and installation are critical to unlocking the MC901’s full performance. We specify it for clients seeking the ultimate amplification for bi-ampable loudspeakers, and can arrange a demonstration and handle delivery and setup across the South. Speak to our team to arrange a listen or to discuss your loudspeakers.
