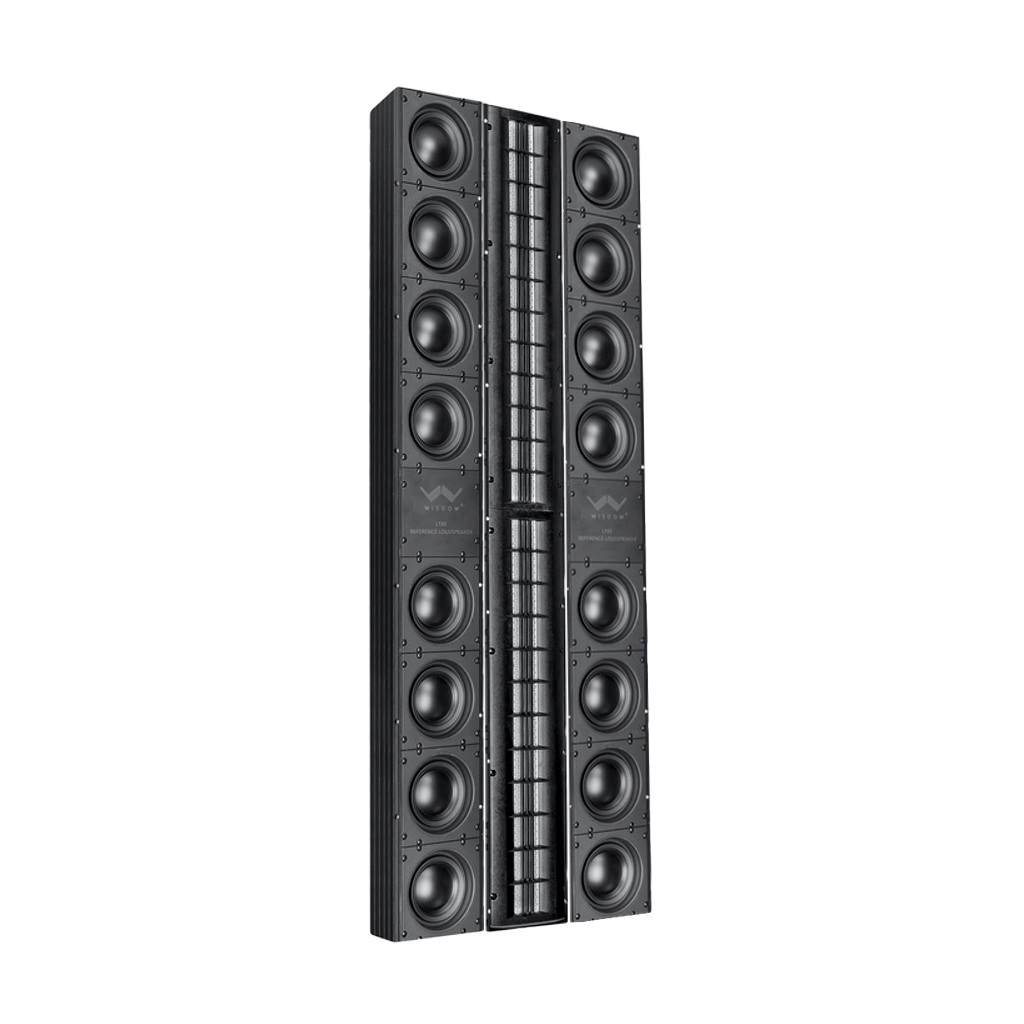

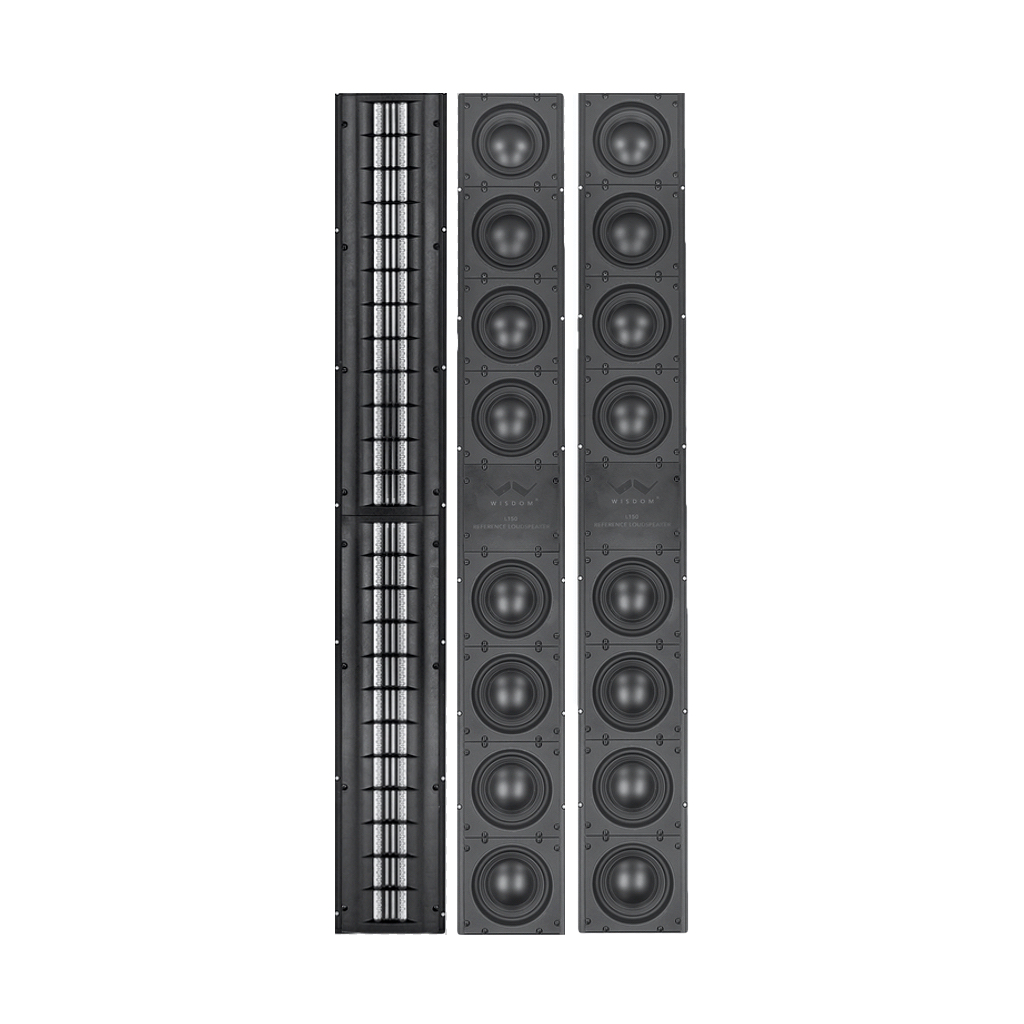

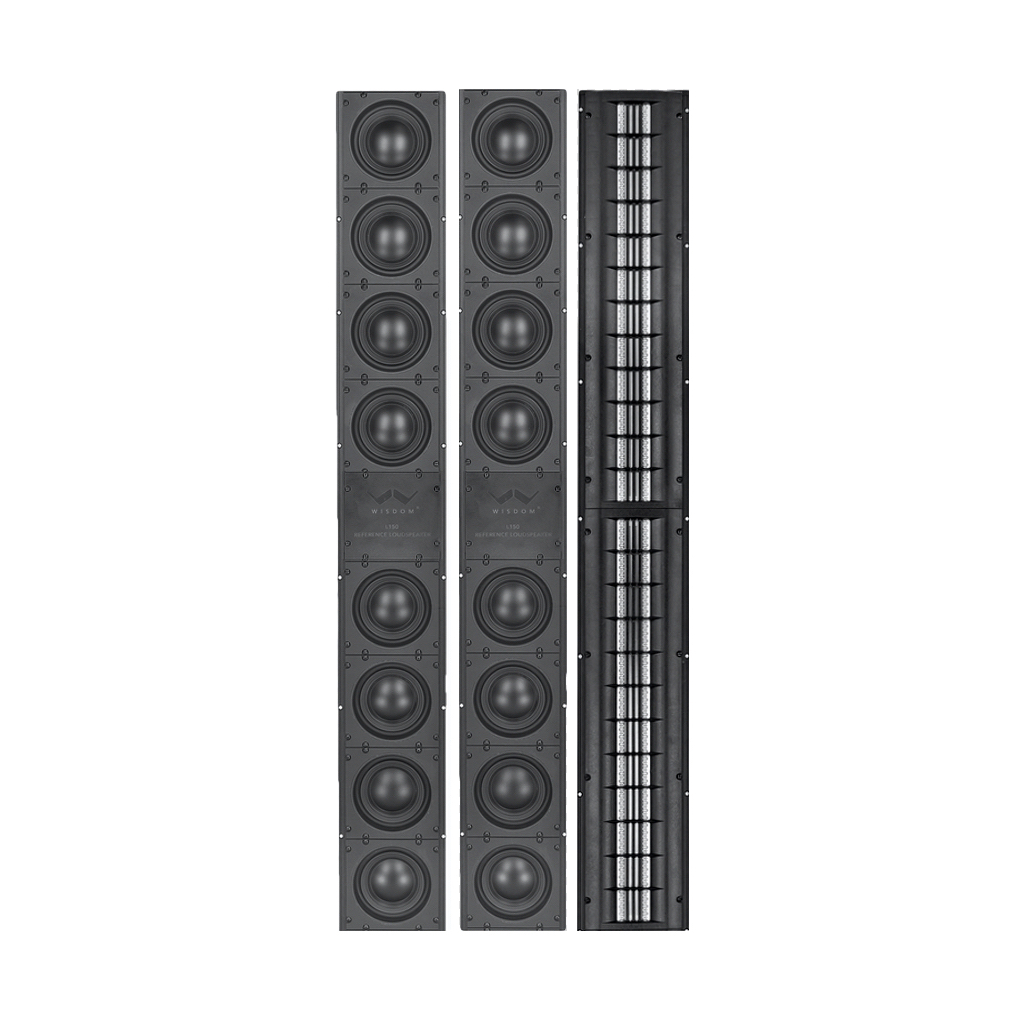

Wisdom In Wall Line Source SAGE SERIES C150i

Description

Overview

The Sage Series C150i is a high-output in-wall line-source loudspeaker from Wisdom Audio. It takes the same thin-film planar-magnetic array used across the Sage range and pairs it with a substantial woofer section, giving greater bass authority and output than the smaller in-wall models — a loudspeaker for larger rooms and more demanding music and cinema systems that must still stay completely hidden.

Design & build

The C150i is built as slim architectural planar and bass sections that sit flush in the wall behind a paintable, colour-matched grille, with custom-length grilles available. As a true line source it avoids the bulk of a conventional full-range cabinet, so even at this output level it integrates cleanly into a room rather than imposing on it.

Sound & performance

The line-source design spreads sound evenly across the room’s width and reduces floor and ceiling reflections, keeping imaging and clarity consistent over distance — valuable in the larger spaces this model is built for. Quoted frequency response is 30Hz–20kHz ±2dB relative to the target curve, giving deep, even reach across a wide listening area.

Key features

The planar array uses two 24-inch thin-film planar-magnetic drivers — a 48-inch driving surface — covering six octaves, over a bank of sixteen high-output pressure woofers whose combined area is equivalent to a 15-inch woofer. The lightweight PEEK planar film gives fast, low-distortion response, while the large woofer section supplies the scale a big room demands.

Technology

The C150i is an actively driven system: it requires an outboard active crossover with DSP and five channels of amplification, so its planar and woofer sections are each driven and equalised precisely for the room. This active platform is how Wisdom achieves consistent full-range performance from a slim in-wall enclosure of this capability.

Specifications

Type: high-output in-wall line-source loudspeaker. Planar drivers: two 24-inch thin-film planar-magnetic (48-inch total), six octaves. Woofers: sixteen high-output pressure woofers (radiating area equivalent to a 15-inch woofer). Frequency response: 30Hz–20kHz ±2dB relative to target. Impedance: planar 4.5 ohms resistive; woofer 4 ohms nominal, 2.5 ohms minimum. Sensitivity: 95dB / 1W / 1m (planar). Peak power handling: greater than 1000W. Dimensions: 52.63 × 8.22 × 3.8 in. Requires outboard active crossover, DSP and five channels of amplification.

Who it’s for

The C150i suits a large, high-performance two-channel or cinema room where the owner wants full-range, high-output sound with no visible loudspeaker. It is a system designer’s speaker, specified and calibrated to the room rather than bought off the shelf.

Why buy from Hidden Home Technology

A speaker of this capability rewards careful specification and calibration of its array, DSP and amplification. We design, install and calibrate Wisdom Audio systems across the South and can demonstrate what planar line-source loudspeakers do in a real room. Prices are on application — speak to our team about your project, or browse our loudspeakers.

The Hidden Home view: Wisdom Sage C150i

The C150i brings the planar line source of Wisdom’s larger Sage L75 and L150 into a wall at a more compact height of about 50 inches. A planar column handles the midrange and treble. Two woofer arrays hold sixteen small high-pressure woofers, which Wisdom rates as equal to one 15 inch woofer, and the quoted response reaches down to 30 Hz.

Its grille is slim and can be painted to match the wall or made to a custom length. Behind it sits an active system, so each speaker needs five channels of amplification and an outboard crossover with DSP, which we calibrate for the room once the speakers are in.

It suits a large music room or cinema that needs full-range sound from speakers nobody can see. A Wisdom system of this size is specified and calibrated to the room rather than bought off the shelf, so call us and we will design yours.

Sources: Wisdom Audio, “Sage Series C150i”, the maker’s own page.
