£6,950.00

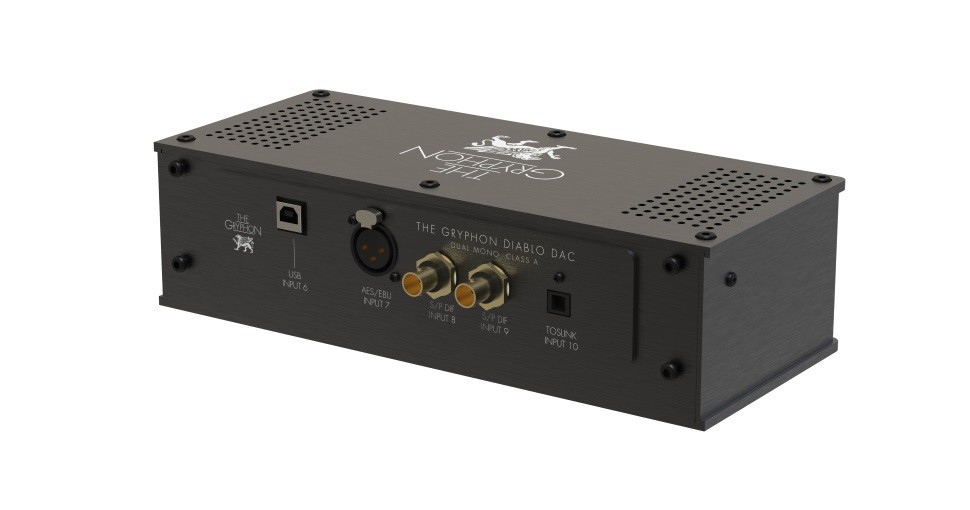

The DAC3 is the perfect match for the new Diablo 333 integrated amplifier, adding 5 top notch digital inputs to the Diablo 333 existing four analog inputs.
With the DAC3 module build in, the Diablo 333 display informs you about the chosen digital input Sampling frequency, PCM/DSD format and digital filter setting.
True Dual Mono discrete build Class A Analog configuration
Zero global negative feedback
Sabre High-Performance ES9039PRO D/A converter
USB input compatible with following audio formats via PC/MAC/Linux: PCM: 44.1, 48, 88.2, 96, 176.4, 192, 352.8 and 384 kHz, up to 32 bits DSD via USB: DSD64, DSD128, DSD256 and DSD512
XLR and BNC inputs compatible with PCM: 22.05, 24, 32, 44.1, 48, 64, 88.2, 96, 176.4 and 192 kHz, up to 32 bits
TOSLINK input compatible with PCM: 22.05, 24, 32, 44.1, 48, 64, 88.2, 96 kHz, up to 24 bits
Seven user-selectable PCM digital roll-off filters
Temperature-compensated, ultra-low jitter crystal oscillator with better than 5 parts per million accuracy
Super-Capacitor (12.5 Farad!) power supply for USB module – acts like a true battery supply
First-order PCM analogue filters and second-order DSD analogue filters with Polypropylene capacitors
Analogue output stages with ultra-low noise +/- 22VDC regulated voltage supplies for best analogue THD and noise suppression
Multiple Local Voltage regulators for best digital noise suppression
Separate left/right channel ultra-low noise power supply for analogue section of ES9039PRO DAC
Ultra-short signal path
Minimal internal wiring
Six-layer printed circuit boards
PCB-mounted input sockets eliminate wiring and shorten signal path
Gold-plated Neutric XLR socket for one balanced 110Ω AES source
Gold-plated 75Ω BNC sockets with Teflon insulation for 2 S/PDIF sources
One TOSLINK optical fiber input
Designed and built in Denmark
DAC3 is an optional internal DAC module for the Diablo 333. Its USB, AES/EBU, coaxial S/PDIF and optical inputs do not imply an HDMI ARC connection or a built-in streaming service. Check your sources before choosing it.
If you already own an external DAC you enjoy, compare retaining it with adding DAC3 as part of the complete system. Our McIntosh versus Gryphon: MA12000 or Diablo 333? sets out the difference between this modular approach and the MA12000’s included digital facilities.
