£400,000.00
Gryphon’s cost-no-object flagship loudspeaker: a four-tower system of 38 bespoke drivers, active 1000-watt bass amplification and Duelund constant-phase crossover technology, hand-built in Denmark to reach a subterranean low end with complete phase coherence.
The Kodo is the flagship loudspeaker system from Gryphon, designed — like the company’s Apex amplifier — without regard to size, cost or complexity. It is a four-tower, part-active system built to remove the usual compromises from loudspeaker design, and it stands among the most complete statements Gryphon has made. For the listener who wants full-range reproduction with active room control, it sits at the very top of the range.

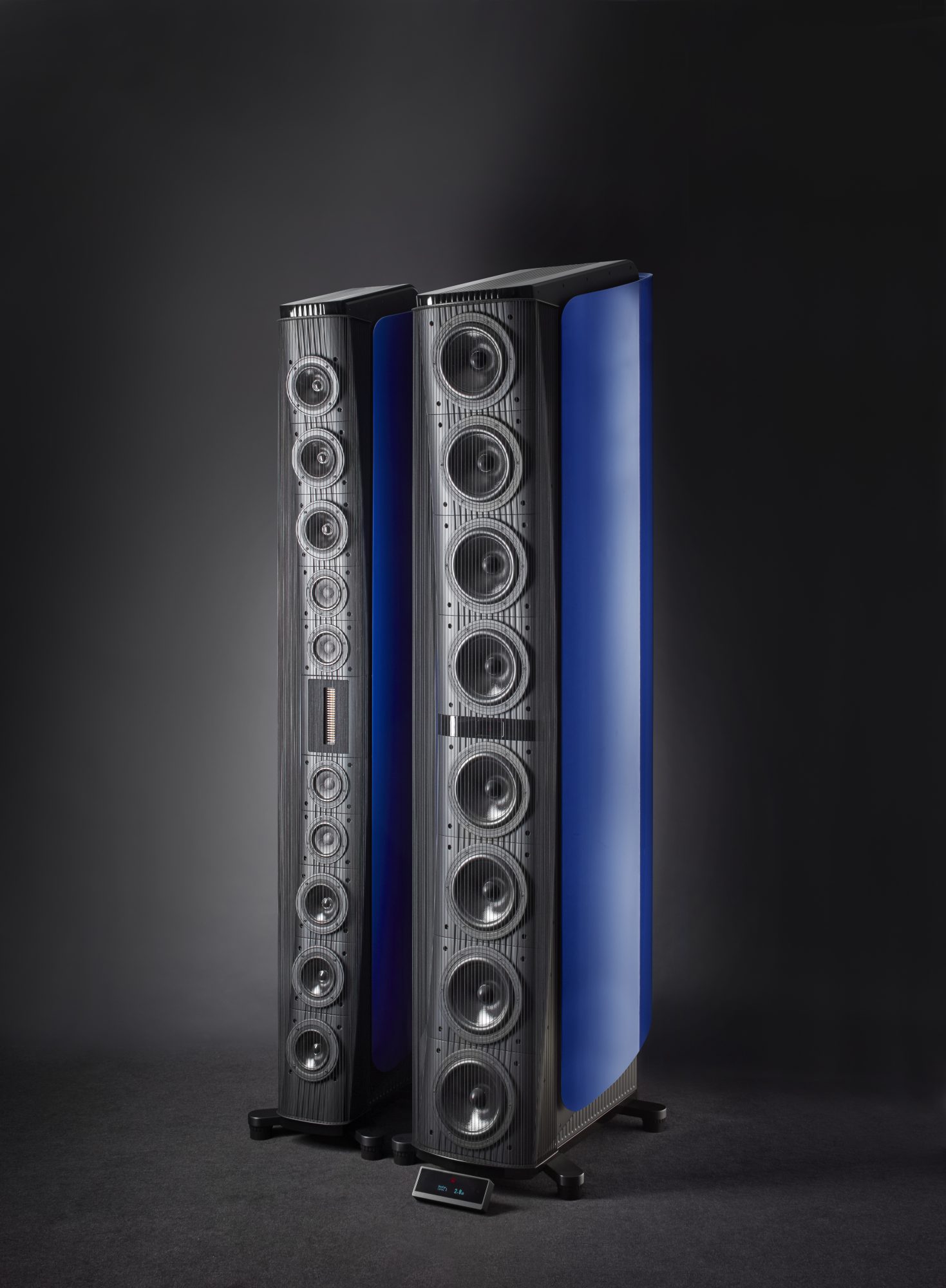

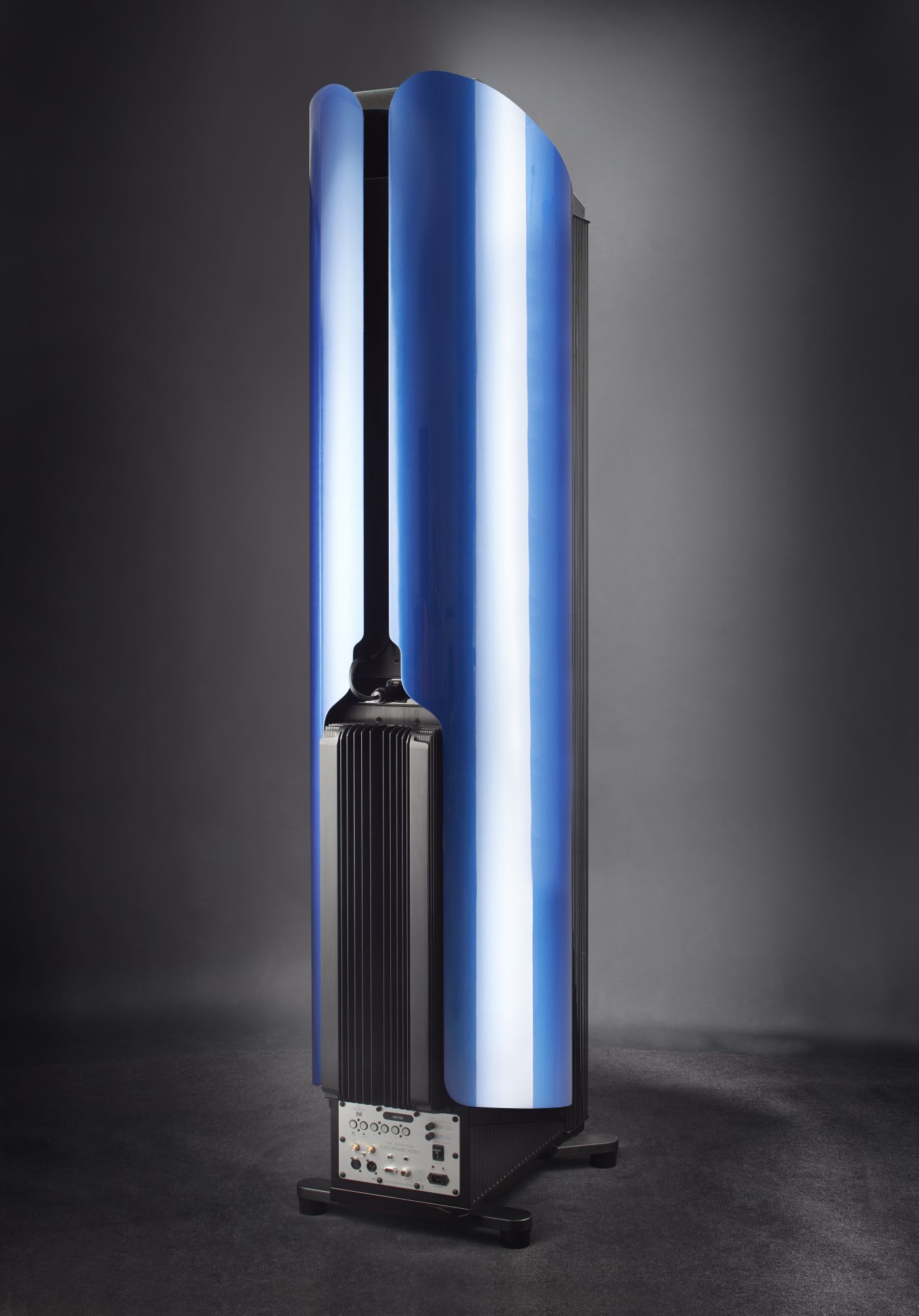

The Kodo comprises four gracefully curved enclosures per pair, each requiring some 110 hours of hand craftsmanship to complete. The cabinets carry all the hallmarks of fine Danish furniture, and detachable “Wings” allow an effectively unlimited range of finishes, so each pair can be tailored to its owner and room. Concave, curved front baffles time-align the drivers to the listening seat.
The system pairs prodigious dynamic range with control. Gryphon quotes 96dB sensitivity and a 4-ohm impedance, with bass extension to a subterranean 16Hz and a frequency response of 16Hz–25,000Hz, dependent on the chosen Q setting and the room. Because the bass is actively driven, the Kodo maintains its composure at any level while remaining an easy partner for a listener’s preferred amplifier above the bass region.

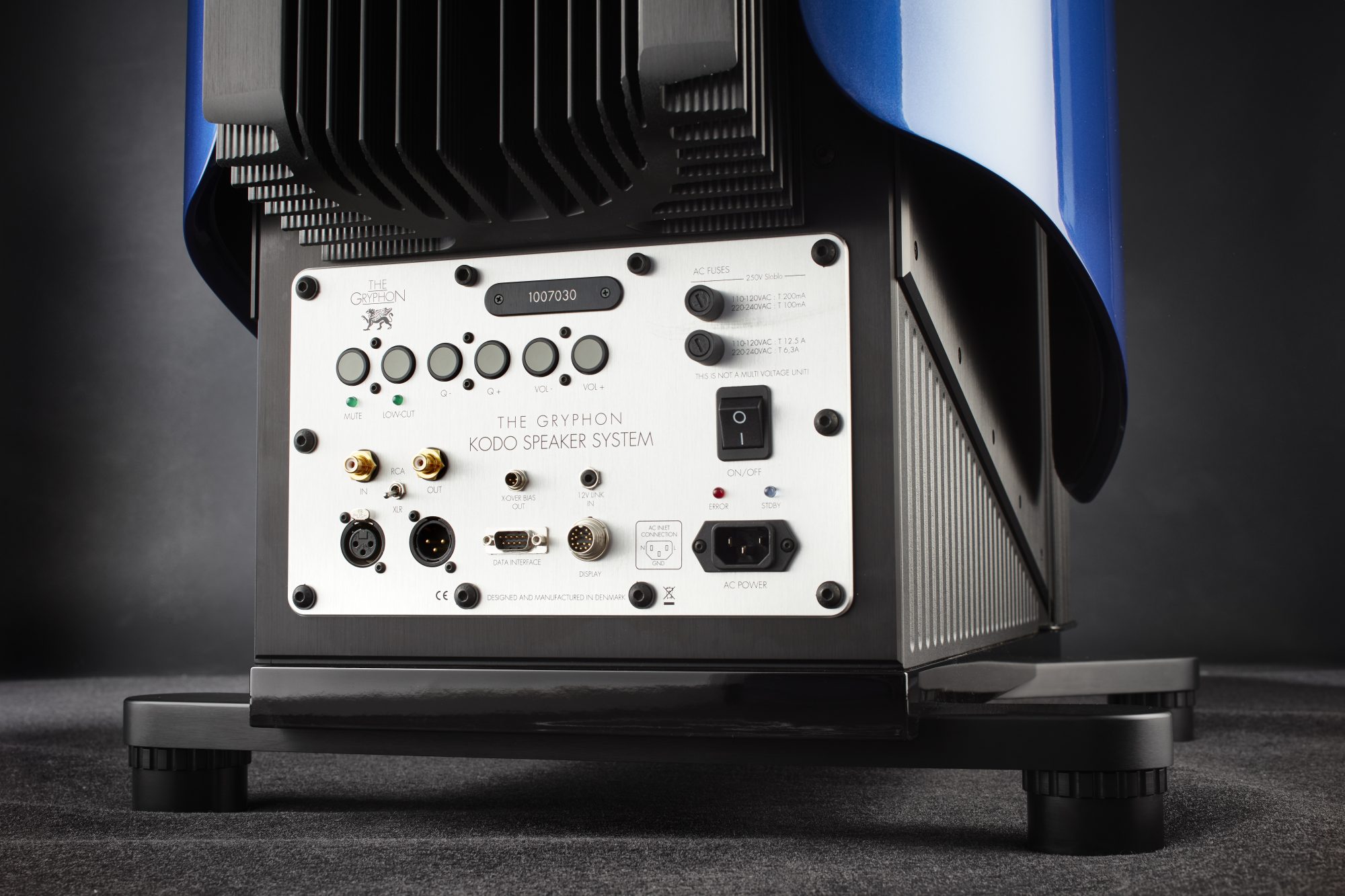

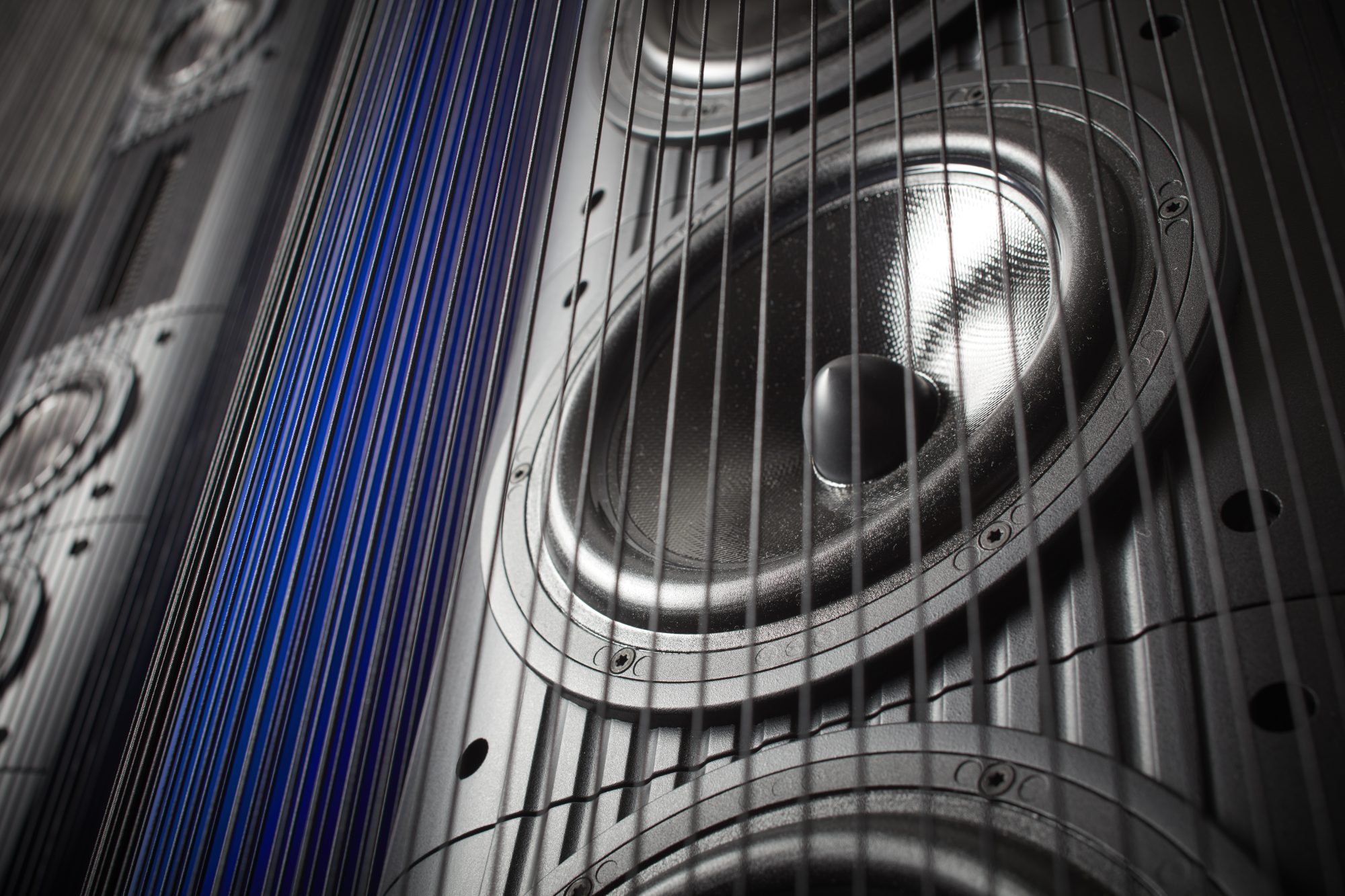

All 38 drivers are custom-designed and exclusive to the Kodo. Each bass tower uses eight 8-inch woofers driven by a dedicated 1000-watt (4000-watt peak) Gryphon-built Class-AB amplifier, giving linear output to the lowest frequencies. The upper towers array six 5.5-inch lower-midrange and four 4.5-inch upper-midrange drivers symmetrically around a German Air Motion Transformer tweeter, handling everything above 250Hz.

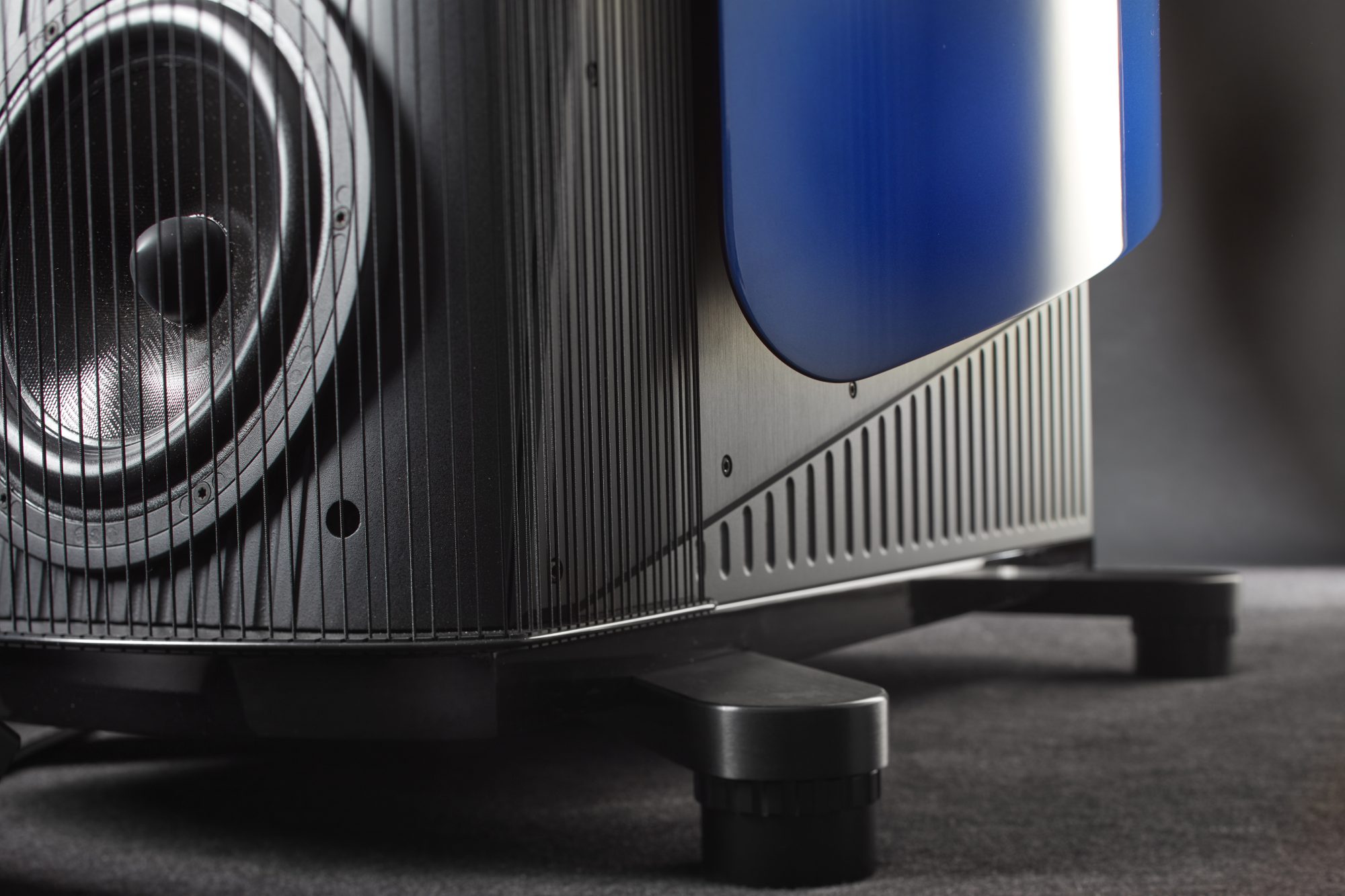

Active Q Control — a Gryphon exclusive — lets the Kodo’s bass be tailored to each room. Duelund Constant Phase crossover technology, based on the work of Danish mathematician Steen Duelund, keeps every driver in phase at all times, realised through custom crossover components and the time-aligned baffles. The bass modules use extensive internal bracing and natural-wool damping.
Type: four-tower, part-active floorstanding loudspeaker system. Drivers: 38 in total — 16 × 8-inch woofers, 6 × 5.5-inch lower midrange, 4 × 4.5-inch upper midrange, AMT tweeter. Bass amplification: 1000W Class AB per bass tower (4000W peak). Sensitivity: 96dB. Impedance: 4 ohms. Frequency response: 16Hz–25,000Hz (Q- and room-dependent). Crossover: Duelund Constant Phase. Craftsmanship: circa 110 hours per pair. Designed and built in Denmark.
The Kodo is for the listener commissioning a reference system in a large dedicated room, who wants full-range scale, dynamics and phase coherence with the ability to tune the bass to the space. It is as much a piece of cabinetmaking as a loudspeaker, and it rewards the finest partnering electronics.
A system of this ambition demands careful room integration and setup. We can advise on partnering amplification and cabling, arrange a demonstration, and manage delivery, installation and the active bass calibration across the South. Speak to our team to arrange a listen or to specify your finish.
