Description

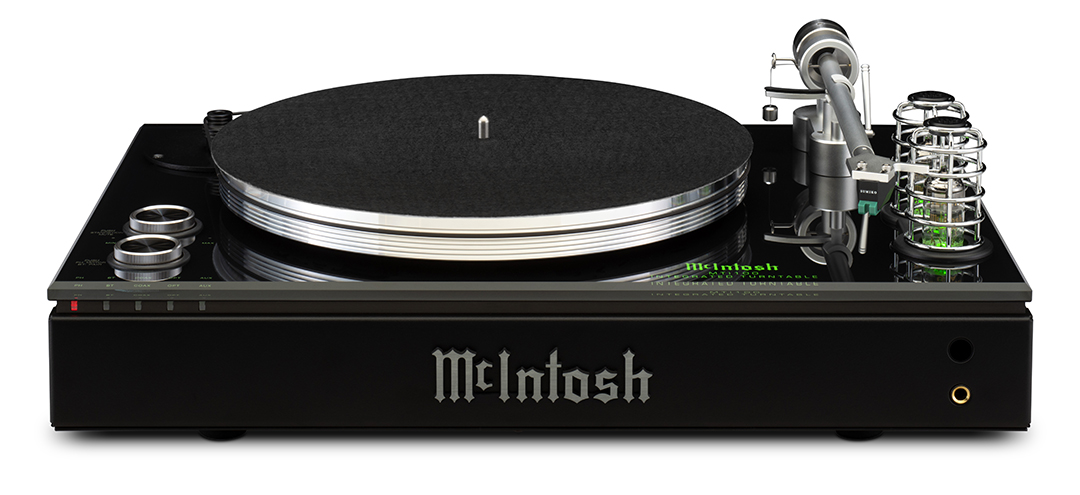

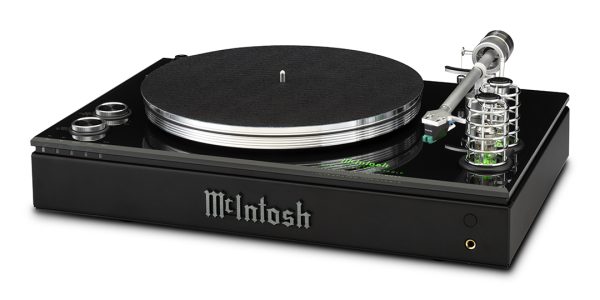

The McIntosh MTI100 Integrated Turntable System is a uniquely complete analogue and digital music solution, combining a precision turntable with amplification, preamplification and modern connectivity in a single, beautifully engineered component. Designed for listeners who want exceptional sound quality without system complexity, the MTI100 brings together McIntosh’s analogue heritage and contemporary versatility.
At its core is a belt-driven turntable supporting 33⅓ and 45 rpm playback, topped by a substantial 7-pound machined aluminium platter. The platter and matching aluminium tonearm sit on a 3/8-inch glass platform, identical to the glass used in McIntosh amplifier front panels, which itself rests on a custom metal sub-plate. This layered construction provides excellent mass loading and vibration control, helping to suppress external resonance and preserve playback accuracy.
The turntable is driven by an industrial-grade AC synchronous motor with a two-speed pulley, ensuring rotational speed remains precisely locked to the AC mains frequency for stable, accurate playback. Supplied as standard is a Sumiko Olympia moving magnet cartridge, offering improved dynamics, extended frequency response and confident tracking for a wide range of record pressings.
Beyond vinyl playback, the MTI100 incorporates a complete amplification and control system. A Class D power amplifier delivers 80 watts per channel into 4 ohms or 50 watts per channel into 8 ohms, driving passive loudspeakers directly. The main preamplifier section is powered by two 12AX7 vacuum tubes, adding warmth, dimensionality and musical flow, while a dedicated, shielded phono preamplifier ensures low-noise analogue performance free from internal interference.

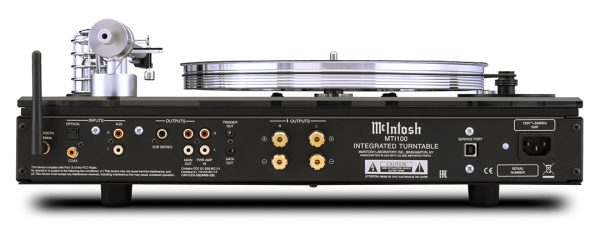

Modern connectivity is built in throughout. The MTI100 includes Bluetooth 4.2 with high-definition audio support, aided by an external antenna for stable signal reception. Digital coaxial and optical inputs allow connection of televisions, CD players or streamers, while an analogue auxiliary input supports additional legacy sources. A subwoofer output enables low-frequency reinforcement, extending system flexibility.
For personal listening, the MTI100 features a High Drive headphone amplifier, delivering increased output power and gain to support a wide range of headphone designs. Stereo speaker outputs allow music to be shared easily, making the MTI100 suitable for both focused listening and social environments.
Operation is simple and intuitive. Power, volume and input selection can be controlled via the included remote control or directly from the unit using classic McIntosh rotary knobs. Visual detailing includes an illuminated McIntosh logo embedded in the glass top panel and a die-cast aluminium McIntosh name badge on the front of the chassis.
At Hidden Home Technology, we specify the McIntosh MTI100 for clients seeking a refined, all-in-one vinyl and digital music system that delivers genuine McIntosh sound quality with minimal setup. Correct speaker matching and installation ensure the MTI100 performs to its full potential within compact listening spaces or lifestyle-focused systems.
