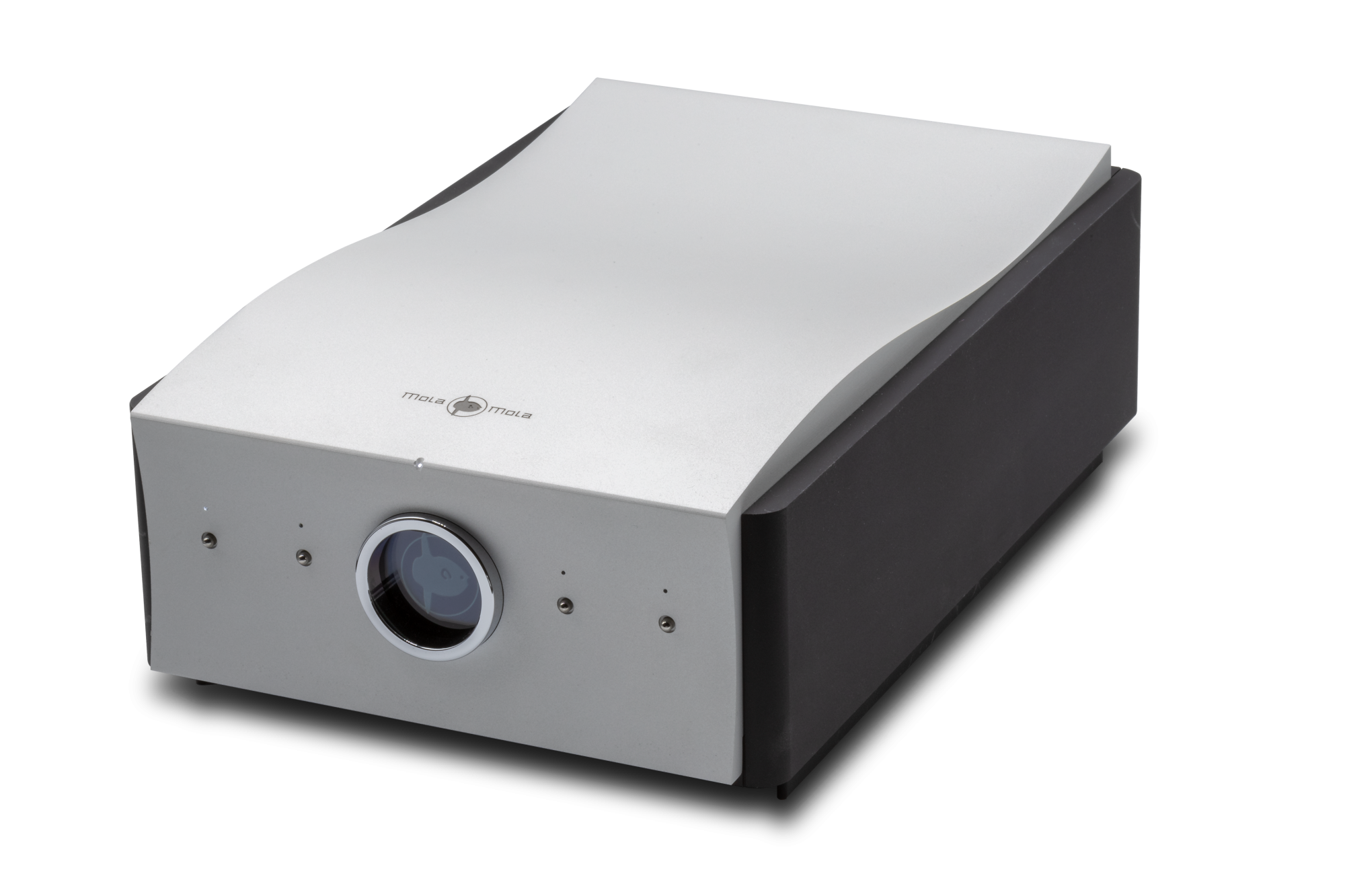

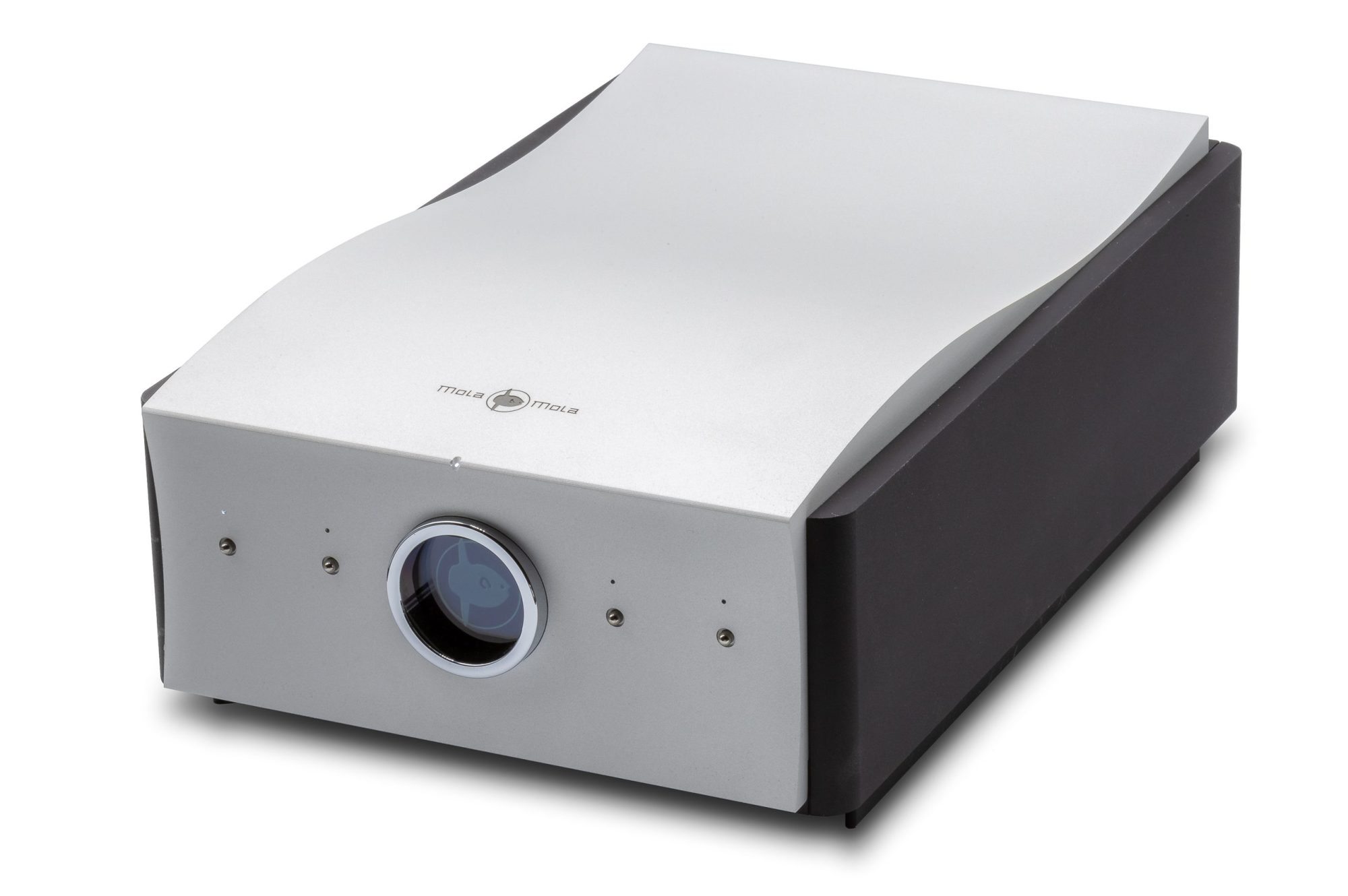

Mola Mola Tambaqui DAC & Digital Volume Control
£9,999.00
Tambaqui combines discrete digital-to-analogue conversion with variable balanced outputs. It can control a digital-only system but has no analogue inputs.
Description
Description
This listing is for the Mola Mola Tambaqui DAC with digital volume control, not a separate analogue Tambaqui preamplifier. It suits a system whose sources are digital and whose power amplifier can be driven from its balanced XLR outputs.
Using Tambaqui without a separate preamplifier
Connect digital sources to Tambaqui and its variable XLR outputs to a suitable power amplifier. Set the output level and volume-control arrangement before playback. The Mola Mola Perca is one stereo power-amplifier option; speaker matching still matters.
Add a dedicated music server
We recommend the Mola Mola Tambaqui as a great partner for the Grimm Audio MU1. Connect the MU1’s AES/EBU digital output to the Tambaqui’s AES/EBU input using a suitable 110-ohm digital XLR cable. The MU1 handles music-server duties and digital processing; the Tambaqui converts the digital signal to analogue for your amplifier. The DAC is purchased separately from the MU1. Read the MU1 product page for the streamer details.
When you need analogue inputs
A turntable cannot connect directly to Tambaqui. Even with a phono stage, an analogue input is still needed elsewhere in the system. Choose Makua for analogue source switching, or consider the MU2 streamer/DAC/preamplifier if you want that function integrated with a music server.
The same Tambaqui, explained another way
Our Tambaqui DAC page covers its digital inputs, headphone outputs, Roon Ready function and format limits. These two listings describe the same model, not different DAC and preamplifier hardware versions. Confirm the required system configuration and delivery timing with us before ordering.
Specification
PWM DAC with 32-stage discrete analogue FIR output stage. Avoids 'sigma delta' tones and 'R2R' glitch and low-level linearity errors.
Asynchronous upsampling to 3.125MHz/32 bit. 7-th order noise shaper clearing 80kHz band. Each input rate has an optimized upsampling filter chain.

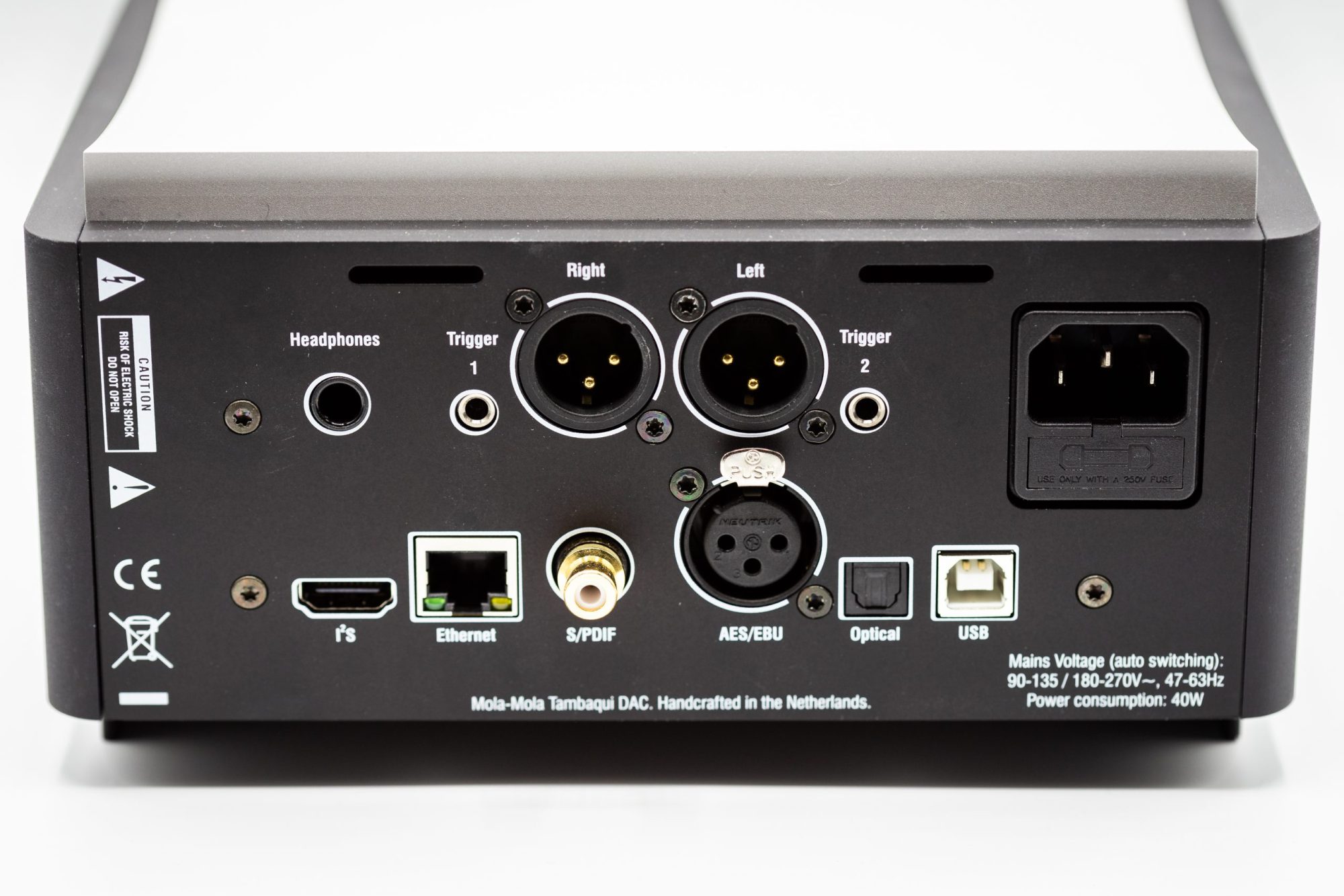

I/O
Optical (Toslink)
S/PDIF (Cinch)
AES/EBU (XLR)
USB type B
Ethernet (Roon Ready)
Bluetooth (SBC, AAC, APTX, LDAC)
IВІS over HDMI
Balanced output (XLR)
Headphone output (6.3mm Jack, Balanced XLR 4pin)
2 programmable trigger outputs (3.5mm Jack)
Processing balance and input gain offset
Selectable output levels
Phase invert
SUPPORTED FORMATS
PCM up to 384kHz/32 bits (>192kHz and >24 bits via USB and Roon only)
DoP and Native DSD up to quad speed (USB and Roon only)
PERFORMANCE
Full-Scale Output Level (XLR): 18dBu
Full-Scale Output Level (headphone): 18dBu
Signal to Noise Ratio: 130dB
THD, IMD: not measurable (estimated -140dB)
Bandwidth: Up to 80kHz (apodizing response)
Integrated jitter: <1ps from 10Hz upwards, <300fs from 1kHz upwards
Jitter rejection: >80dB at 1Hz after 20 seconds of loc
CONTROL
Front button source selection and volume setting
4 programmable presets
(Premium) Remote Control
Mola Mola Remote app
DIMENSIONS AND WEIGHT
200mm (W) x 110mm (H) x 320mm (D)
5.2kg
