Wisdom In Wall Point Source INSIGHT SERIES P2i

Description

Overview

The Insight Series P2i is an in-wall, point-source loudspeaker from Wisdom Audio, the American specialist in high-performance planar magnetic and architectural speakers. It combines a planar magnetic driver with dual dynamic woofers in a single, compact chassis designed to disappear into a wall or ceiling while delivering full-range, high-resolution sound.

Design & build

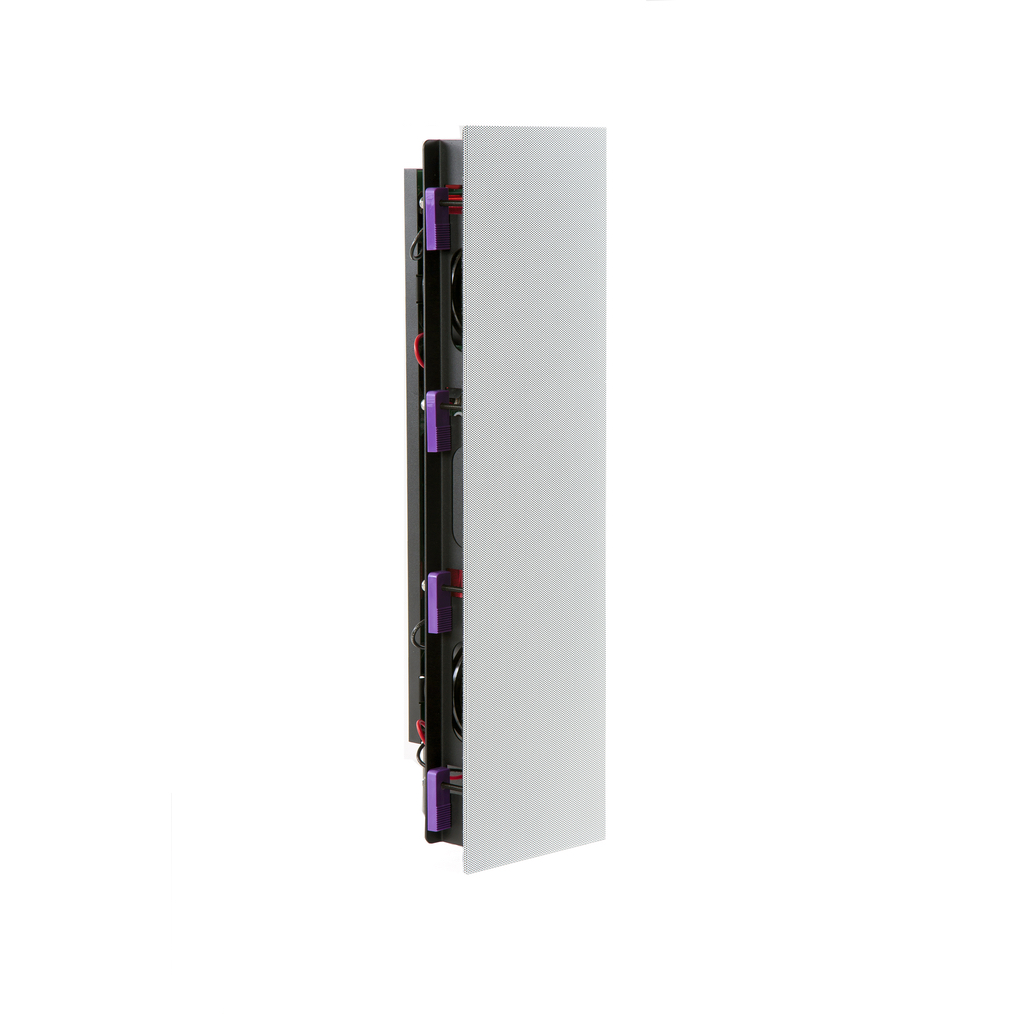

The P2i is built for discreet architectural installation, blending into décor with optional custom-length grilles and vertical or horizontal mounting. As a point-source design its drivers are grouped closely so the speaker behaves as a single acoustic source, giving even, uniform horizontal dispersion and strong off-axis coverage — important where listeners are spread across a room or where the speaker sits overhead.

Sound & performance

The planar magnetic driver covers around five octaves from a single, light, fast-responding film diaphragm, which is the source of the P2i’s clarity and detail. Quoted frequency response is 80Hz–20kHz, sensitivity is 86dB (2.83V, 1m) into a 4-ohm load, and maximum SPL is 107dB at one metre — ample for high-quality music and cinema in a well-integrated system, typically partnered with subwoofers for the lowest octaves.

Key features

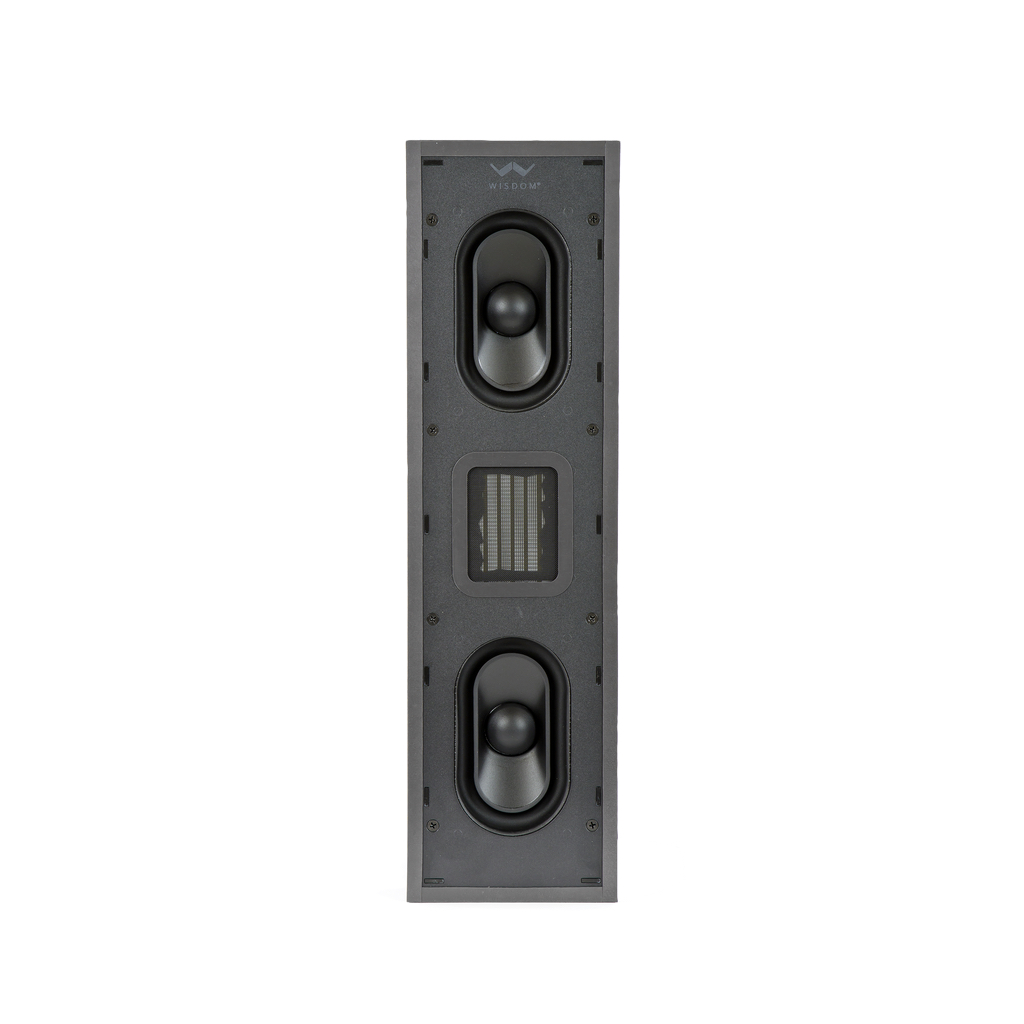

The P2i uses a single planar magnetic driver above two 3 × 5-inch woofers, crossing over at 650Hz. It requires one channel of amplification per speaker, and its vertical/horizontal flexibility and custom grille options make it adaptable to a wide range of rooms and installation constraints.

Technology

Wisdom’s planar magnetic driver uses a lightweight PEEK film diaphragm chosen for fast acceleration and low distortion across its five-octave range. As a thin-film planar device it moves as a single uniform surface rather than pistonically, which underlies the even dispersion and resolution that distinguish Wisdom’s architectural speakers from conventional in-wall designs.

Specifications

Type: in-wall / in-ceiling point-source loudspeaker. Drivers: 1 × planar magnetic (PEEK film), 2 × 3 × 5-inch woofers. Frequency response: 80Hz–20kHz. Sensitivity: 86dB (2.83V, 1m). Impedance: 4 ohms. Crossover: 650Hz. Maximum SPL: 107dB at 1m. Amplification: one channel required. Mounting: vertical or horizontal, custom-length grilles available. Dimensions: 19.44 × 5.39 × 3.43 in (49.4 × 13.7 × 8.7cm).

Who it’s for

The P2i suits the client who wants genuinely high-performance sound from a speaker that is invisible in the architecture — a discreet in-wall or in-ceiling solution for a media room, cinema or whole-home system where finish and dispersion both matter.

Why buy from Hidden Home Technology

Architectural speakers of this calibre rely on correct specification, installation and system design to perform. We design and install in-wall and in-ceiling systems across the South, integrating the P2i with amplification, processing and subwoofers. Prices are on application — speak to our team to discuss your project.
