The Wisdom Insight Series P4m is an on-wall planar-magnetic point-source loudspeaker with a rotatable thin-film driver and twin woofers — high-resolution sound from a slim enclosure that mounts vertically or horizontally.

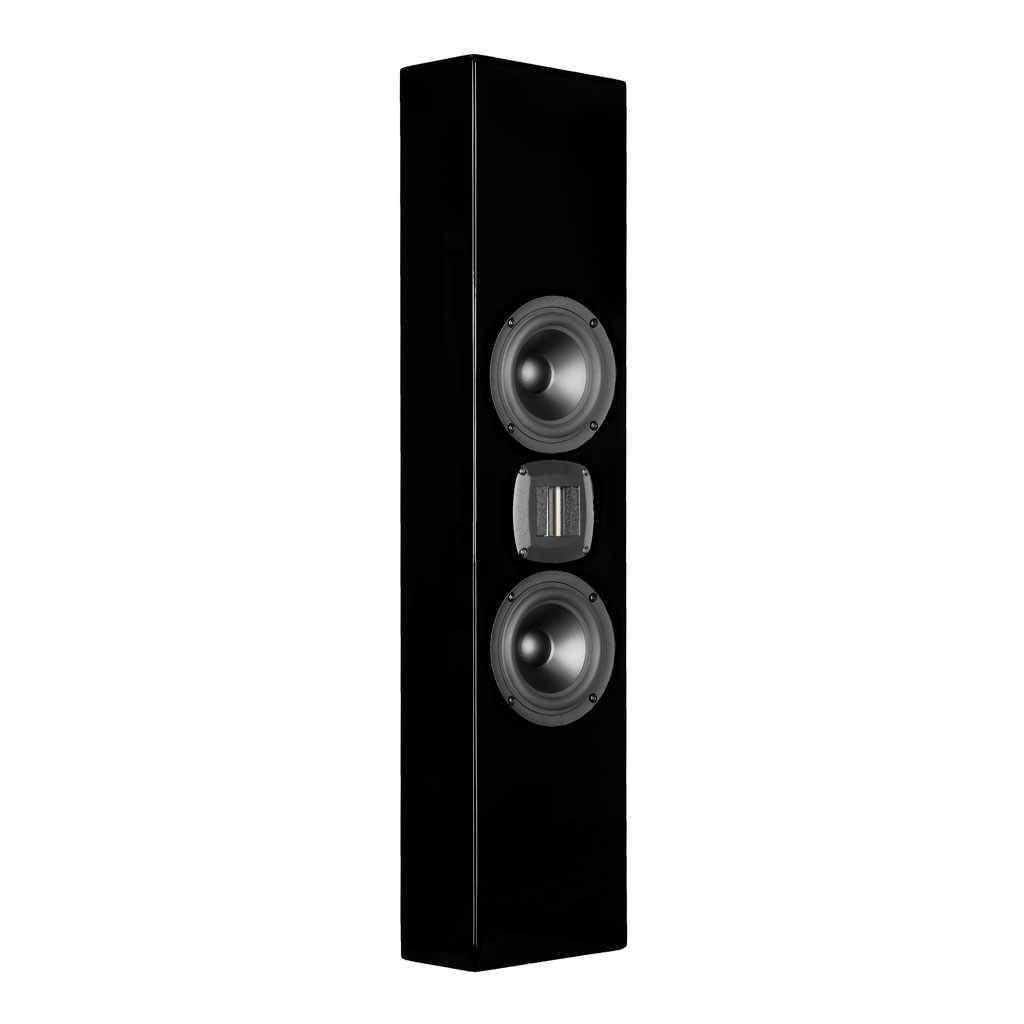

The Insight Series P4m is an on-wall point-source loudspeaker from Wisdom Audio, the architectural planar-magnetic specialist. It pairs Wisdom’s thin-film planar driver with twin woofers in a slim enclosure that mounts on the wall or sits on a shelf, delivering high-resolution sound for both music and cinema where an in-wall fit is not possible.

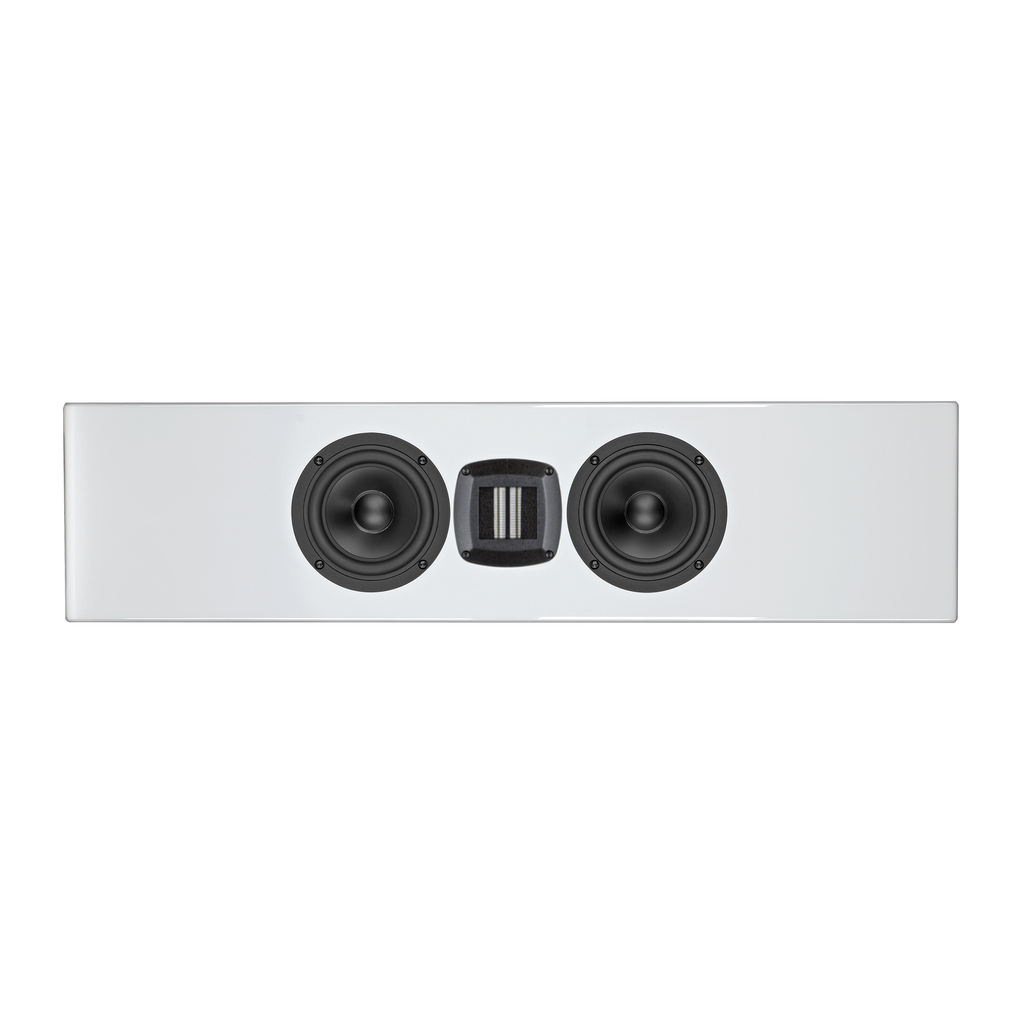

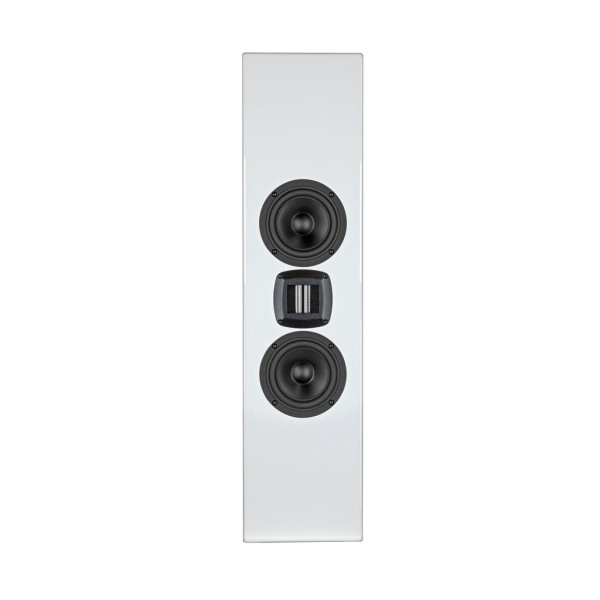

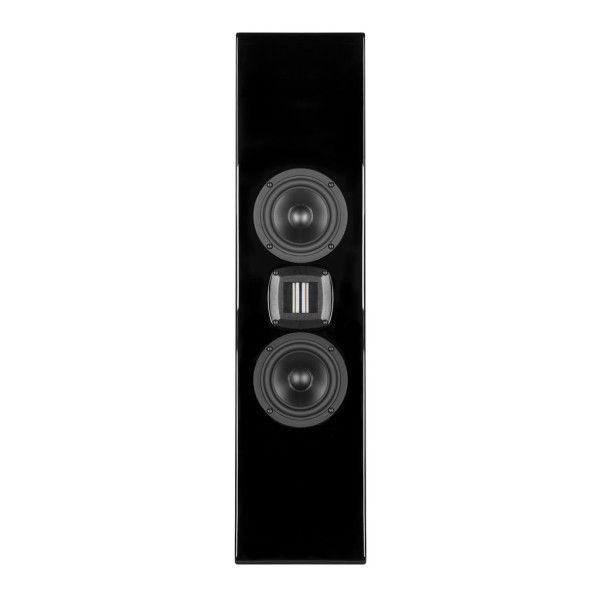

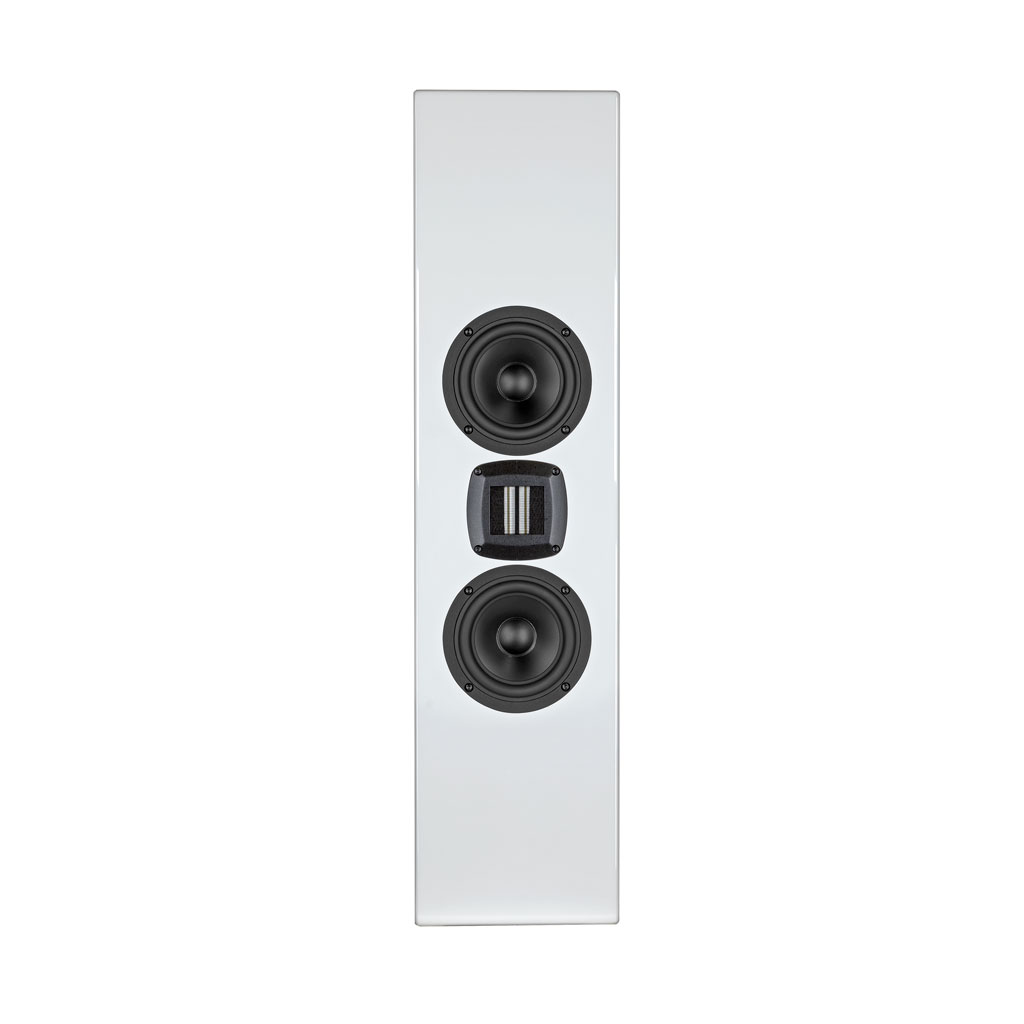

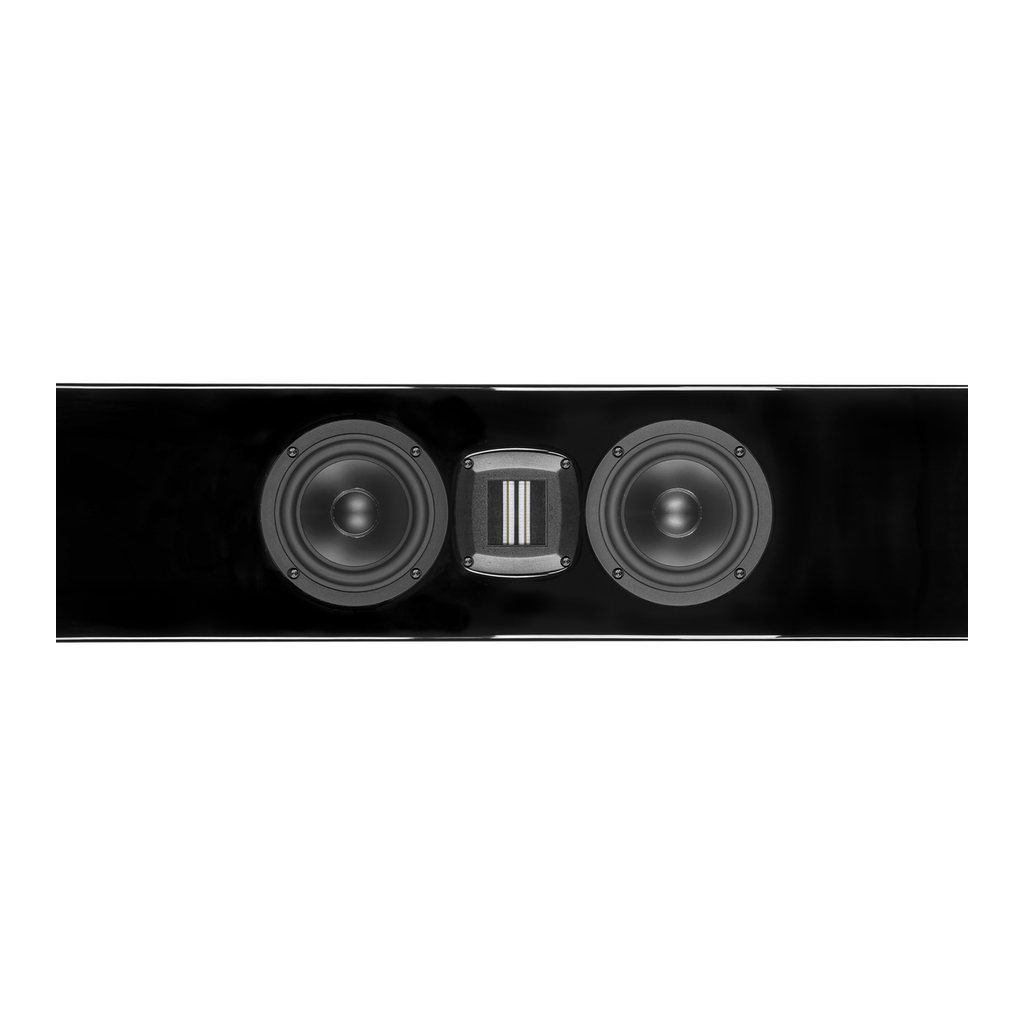

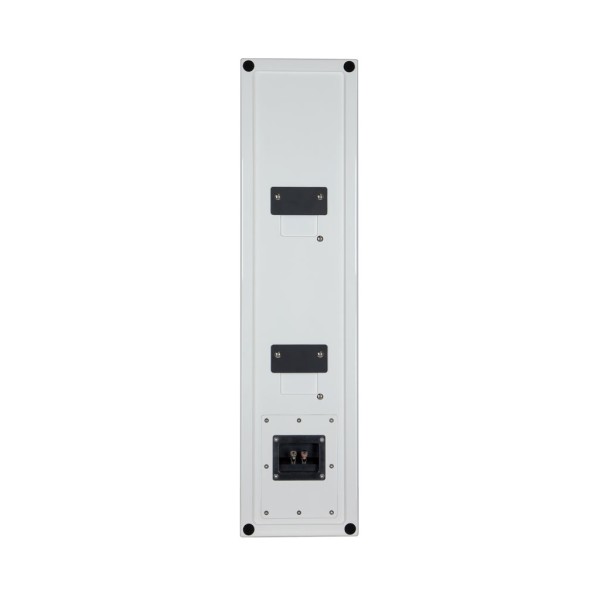

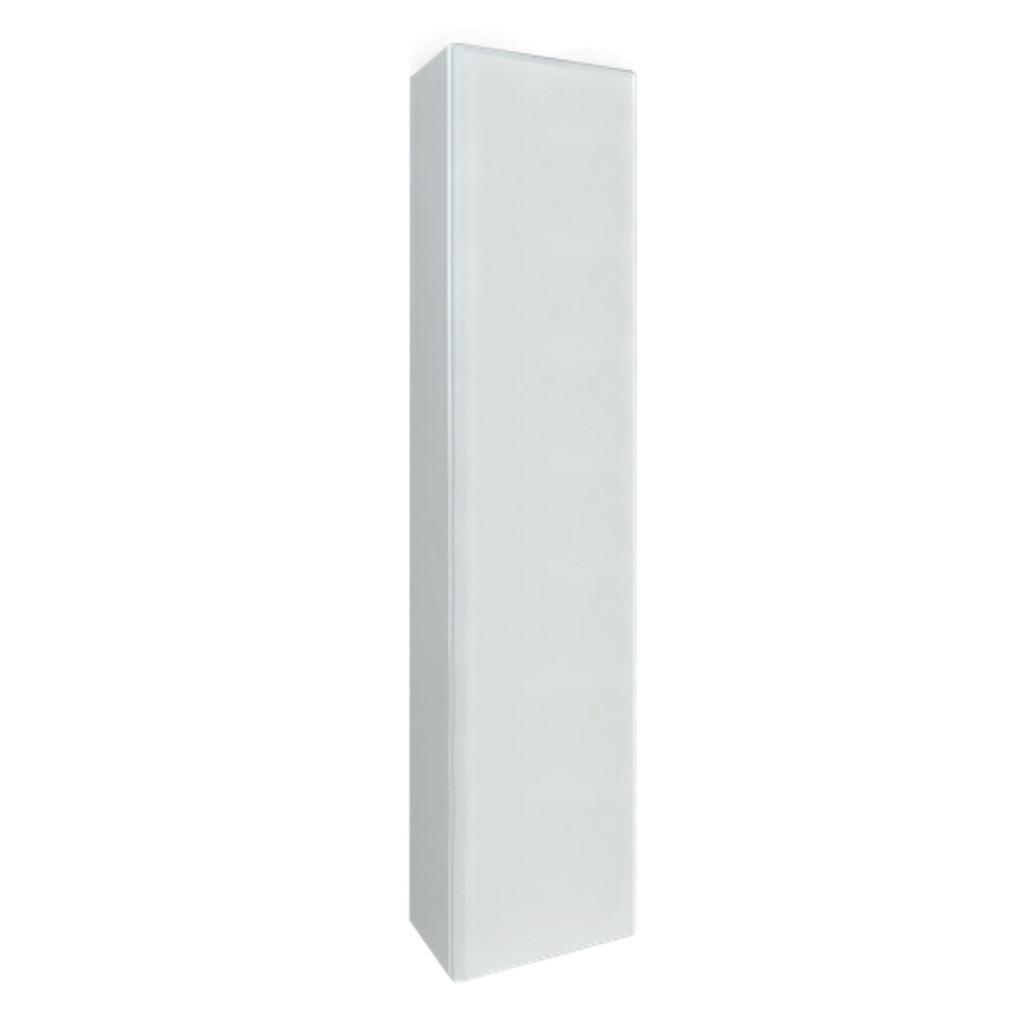

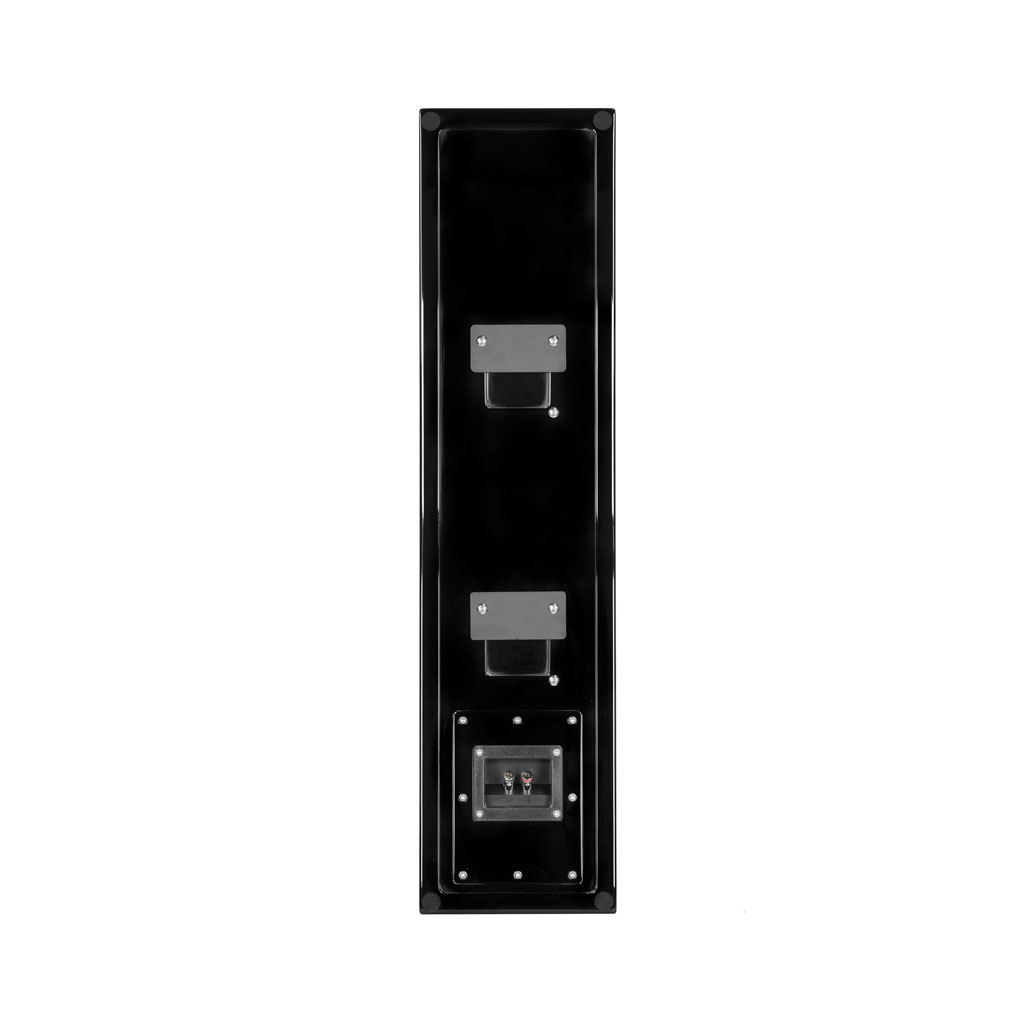

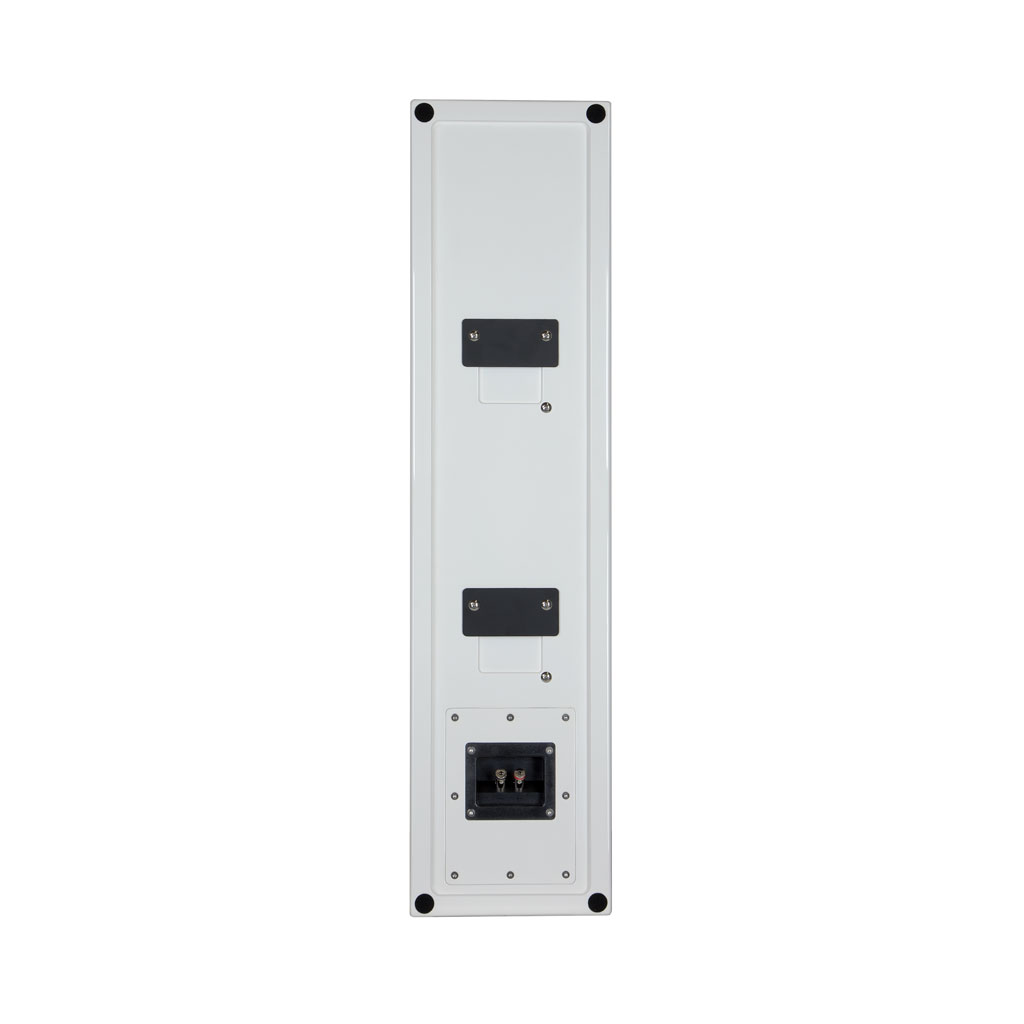

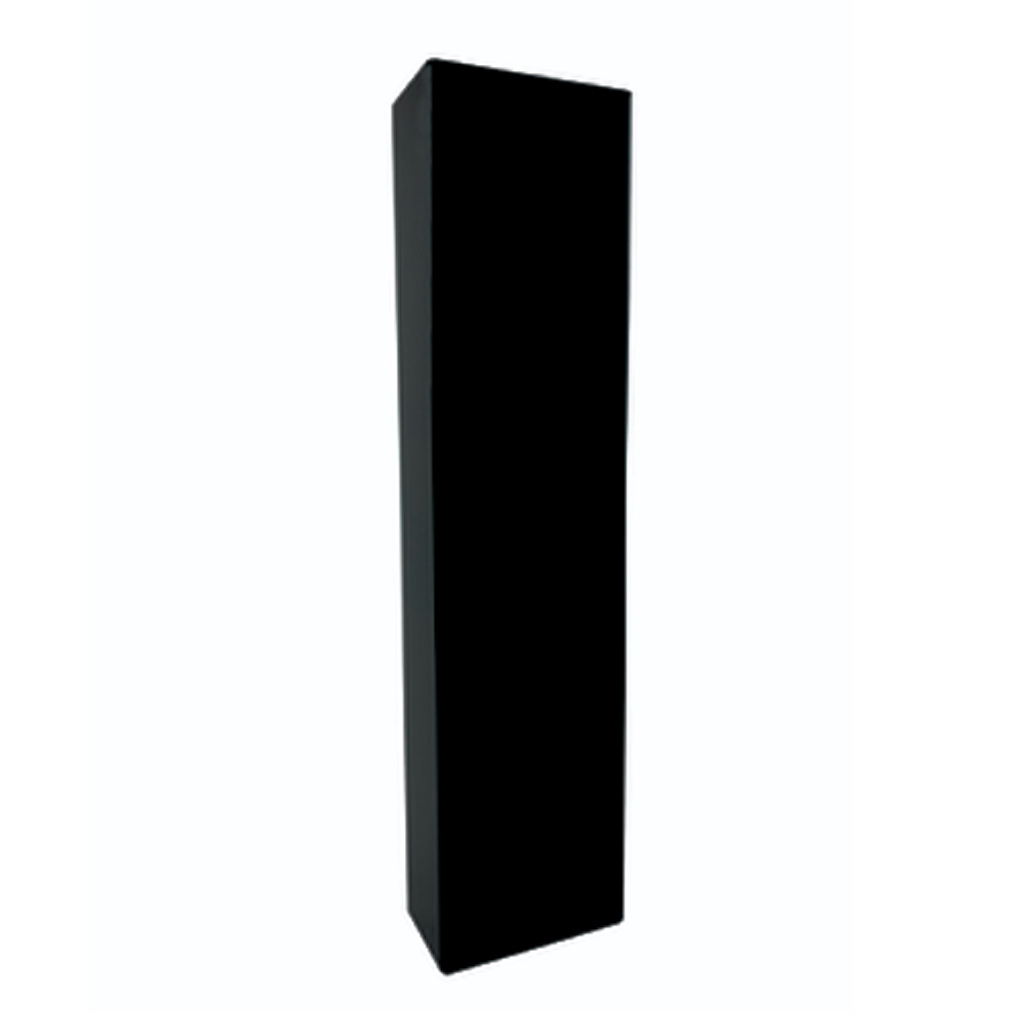

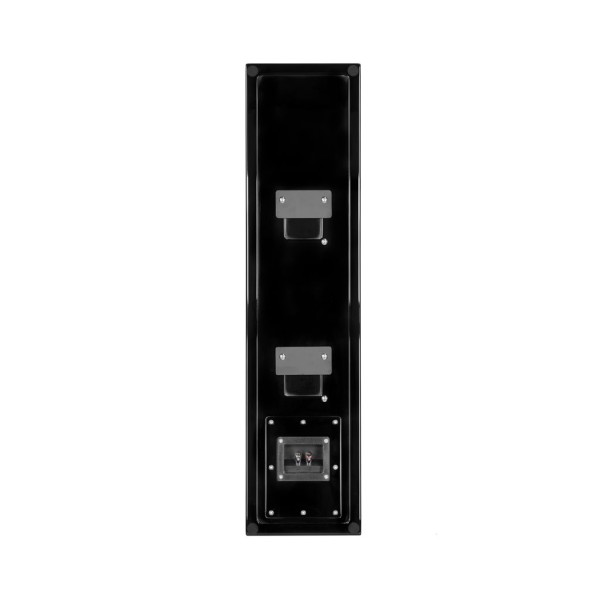

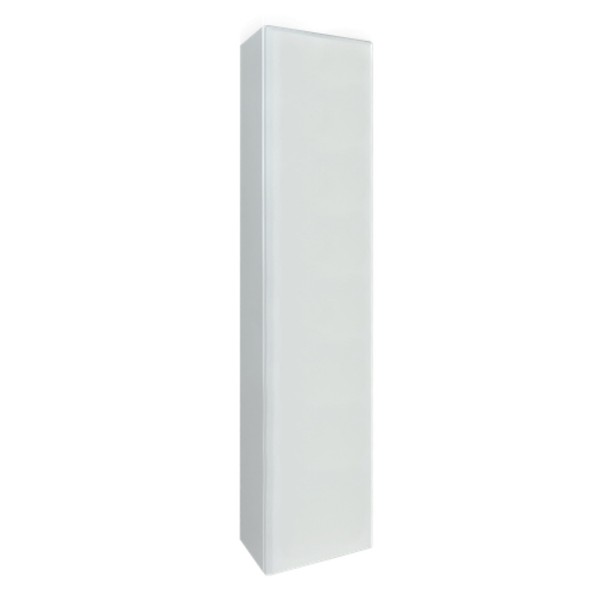

At only 4.13 inches (105mm) deep, the P4m is designed to sit close to the wall. It ships with flush-fitting wall brackets and can be mounted vertically or horizontally, or placed on a shelf. With its grille it measures 33.15 × 8.07 × 4.66 inches (84.2 × 20.5 × 11.84 cm) and weighs around 25lb (11.3kg) shipping.

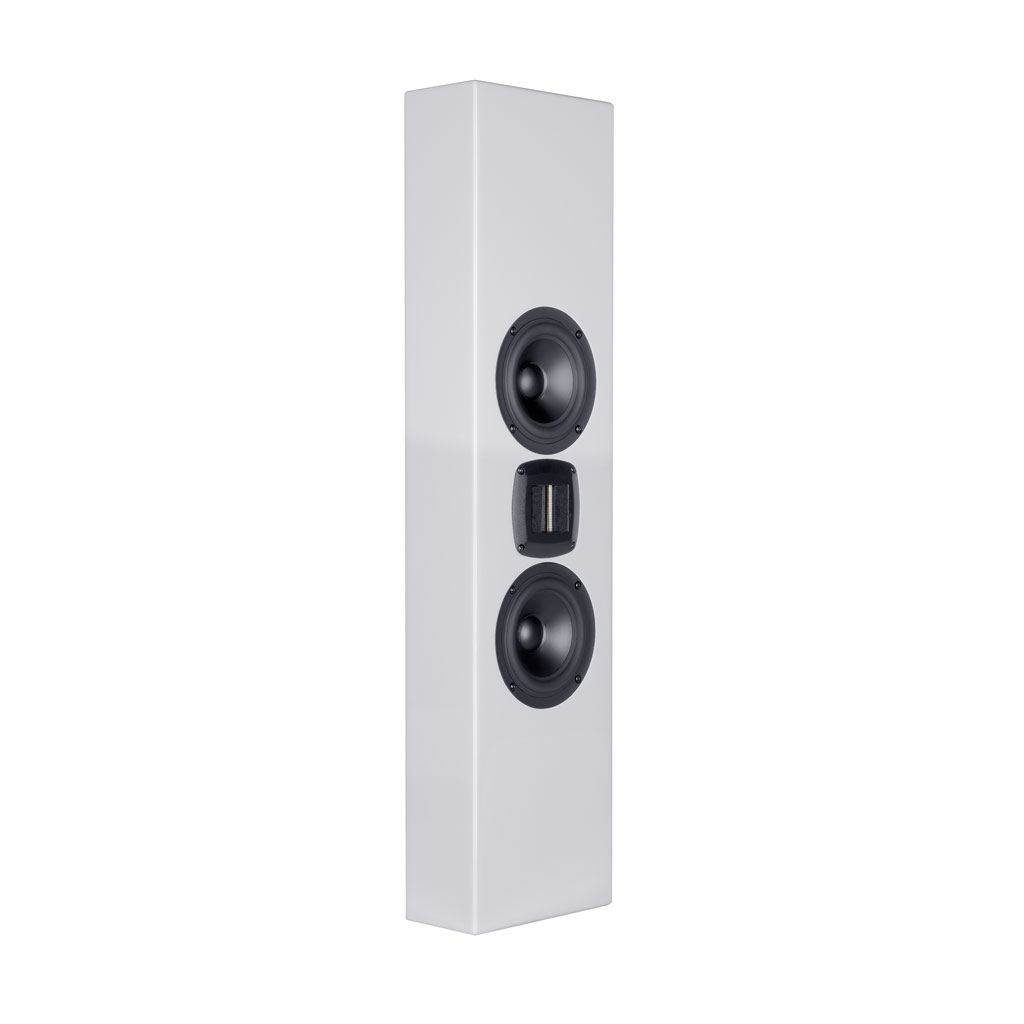

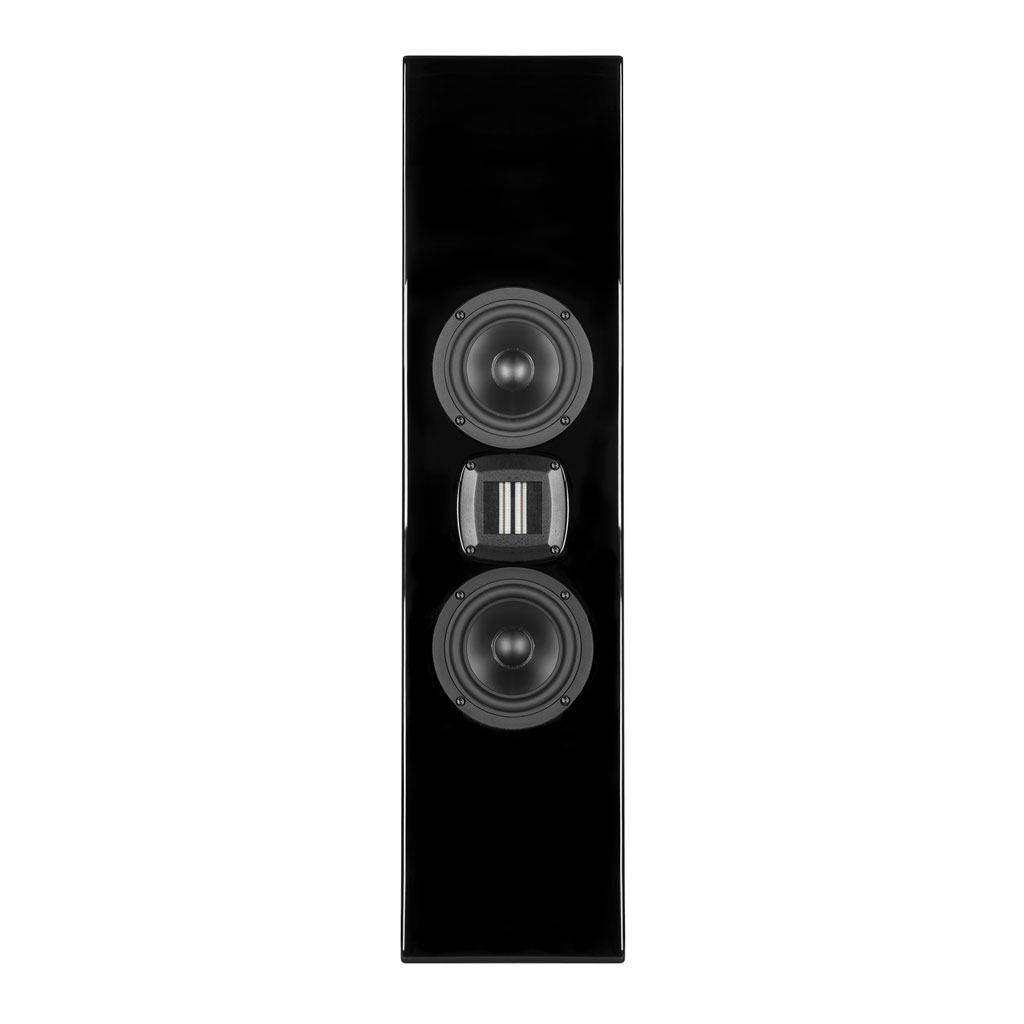

The P4m uses a rotatable planar-magnetic driver alongside two high-output 5-inch woofers. Quoted frequency response is 50Hz–20kHz, with 6-ohm impedance, 89dB sensitivity and a maximum output of 112dB at one metre. Recommended amplifier power is 50–200W. The rotatable driver lets the speaker be optimised whether mounted upright or on its side.
The rotatable thin-film planar driver is the defining feature, giving installation flexibility without compromising the performance in either orientation. Two woofers handle the lower registers, and the speaker uses an internal passive crossover (crossover frequency 650Hz), so it drives from a standard amplifier channel.
Planar-magnetic thin-film drivers move air with a large, light membrane that responds instantly to fine detail, with far less inertia than a conventional cone or dome. Wisdom cites this for exceptional clarity and an open, effortless quality that suits full-range music and cinema alike — here in an on-wall format for rooms that cannot take an in-wall speaker.
Type: on-wall / bookshelf planar-magnetic point-source loudspeaker. Drivers: 1 rotatable planar-magnetic driver, 2 × 5-inch woofers. Frequency response: 50Hz–20kHz. Crossover: 650Hz, internal passive. Impedance: 6 ohms. Sensitivity: 89dB. Maximum SPL: 112dB at 1m. Recommended power: 50–200W. Depth: 4.13 inches (105mm). Dimensions with grille: 33.15 × 8.07 × 4.66 inches. Weight: approximately 25lb (11.3kg) shipping.
The P4m suits the room where an in-wall install is not practical but discreet, high-end sound is still wanted — mounted slim to the wall in a media room or living space, or used on a shelf, for music and film.
Wisdom loudspeakers reward proper installation, amplification and calibration. We integrate the P4m into the room as part of a designed system and tune it to perform at its best. Speak to our team to discuss a Wisdom installation across the South. Pricing is on application.
