The Wisdom Audio Insight Series P6i is a slim in-wall point-source loudspeaker pairing a planar-magnetic MTM array with six woofers — reference-grade detail and dynamics from a design that all but disappears into the wall.
The Insight Series P6i is a point-source in-wall loudspeaker from Wisdom Audio, a maker known for bringing planar-magnetic technology into architectural installation. It combines the detail and dynamics of a planar driver with the low-frequency reach of conventional woofers in a slim in-wall or in-ceiling design, for uncompromised sound that remains almost invisible in the room.

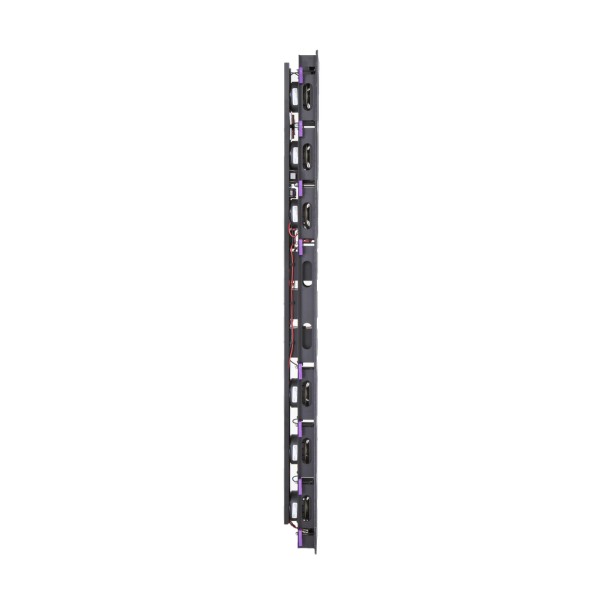

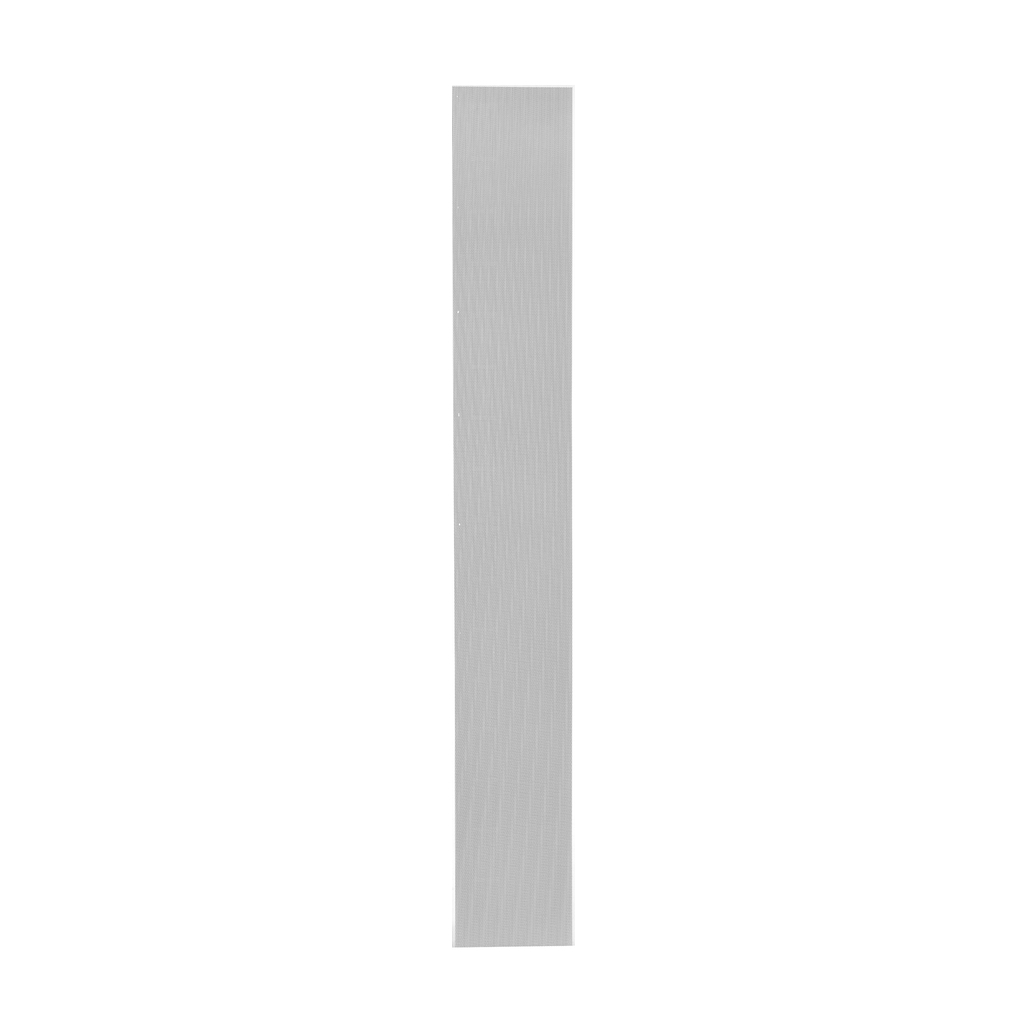

The P6i is a genuinely slim architectural loudspeaker, measuring 51.7 × 5.52 × 3.43 inches (131 × 13.7 × 8.7 cm), so it fits into a standard wall or ceiling cavity and disappears behind a custom-length grille. It can be installed in either vertical or horizontal orientation, giving flexibility across rooms and screen layouts.

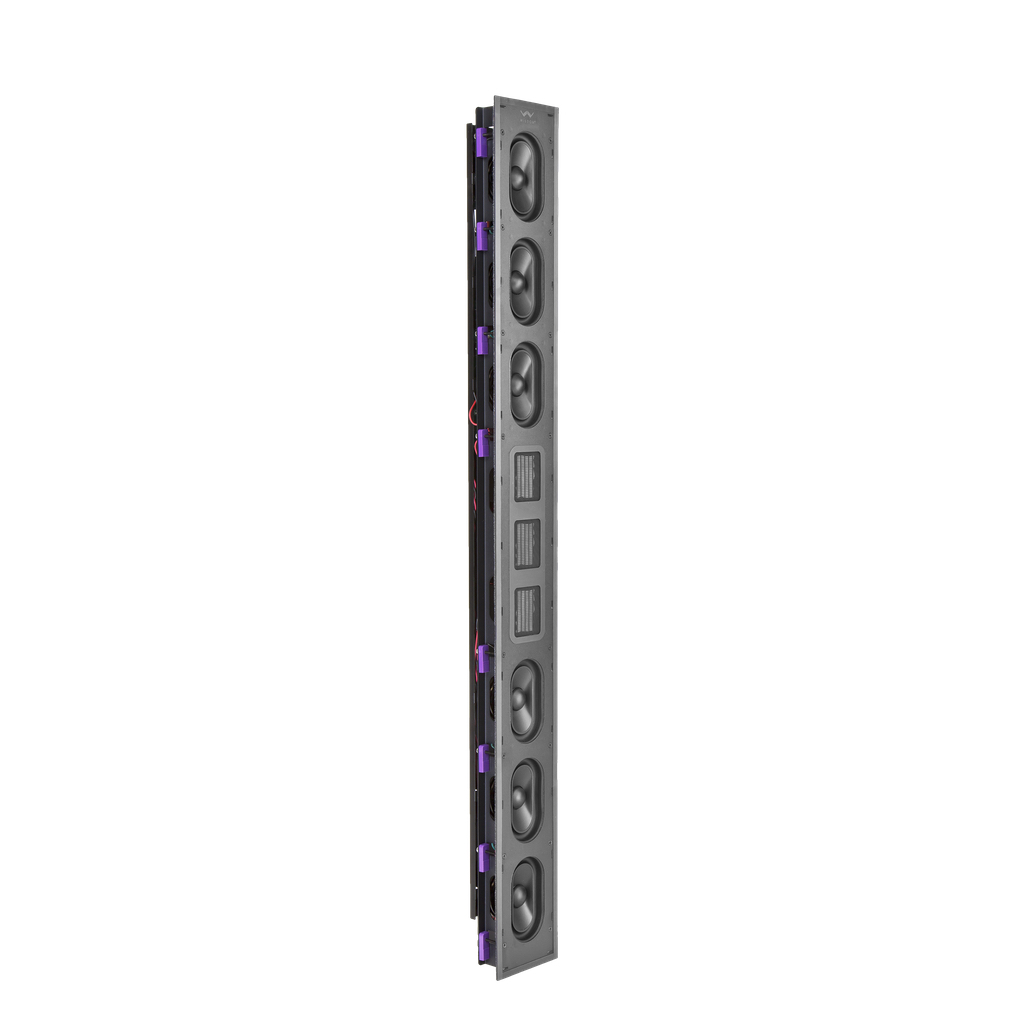

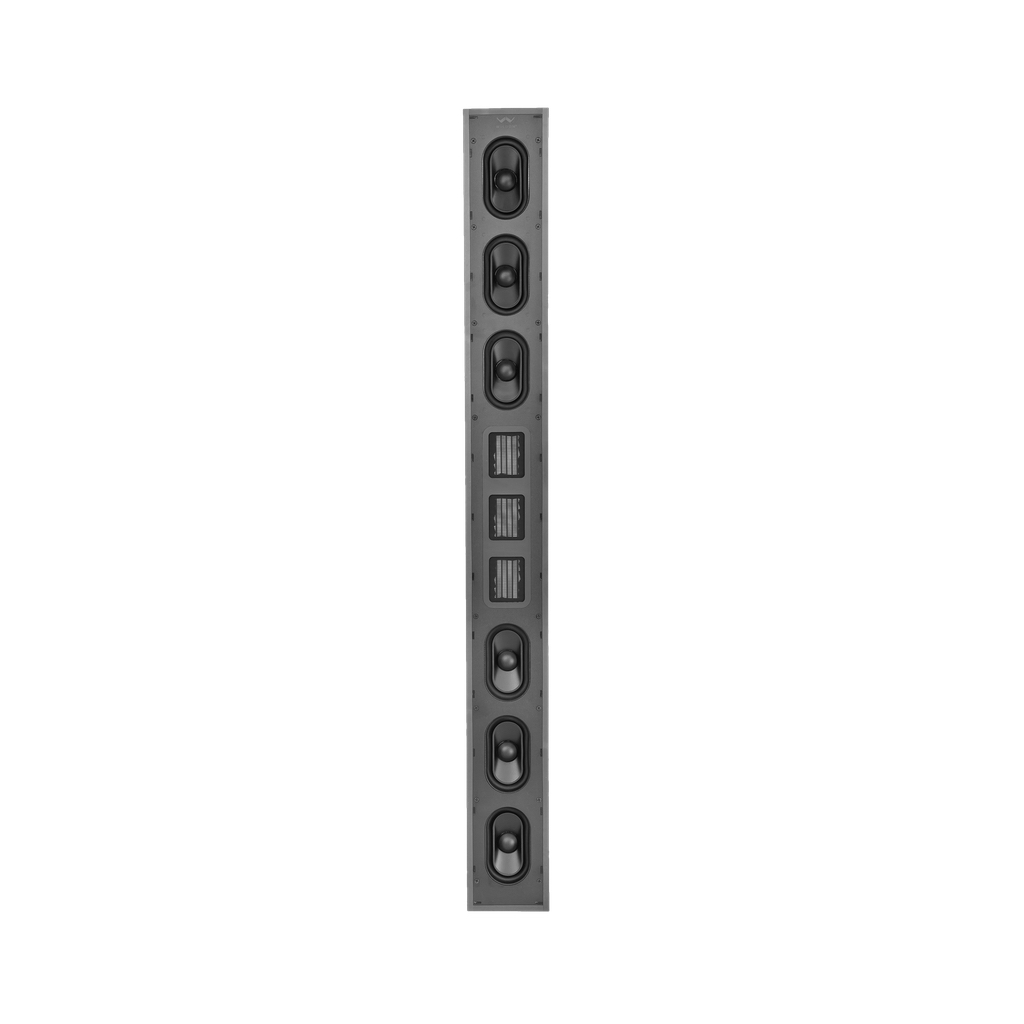

A planar-magnetic MTM (midwoofer-tweeter-midwoofer) array handles the midrange and treble, avoiding the dynamic compression that affects many conventional in-wall designs, and delivering even, wide horizontal dispersion. Six 3 × 5-inch woofers provide the low end. Quoted frequency response is 80Hz–20kHz, with sensitivity of 90dB (2.83V/1m) and a maximum output of 116dB at one metre.
The P6i pairs planar-magnetic MTM drivers with six dynamic woofers for full-range performance, with a crossover at 600Hz and a −6dB dispersion pattern of 60° horizontal by 30° vertical. It requires one channel of amplification and, in the Wisdom manner, a minimum enclosed air volume of 1.0 cubic feet behind it for the specified bass extension.
Planar-magnetic drivers use a large, very low-mass diaphragm driven evenly across its surface, which gives exceptional detail, speed and freedom from compression — qualities Wisdom carries into the architectural P6i. Marrying that planar array to dynamic woofers yields a coherent, wide-bandwidth loudspeaker that hides in the wall while performing well beyond typical in-wall expectations.
Type: planar-magnetic hybrid in-wall point-source loudspeaker. Drivers: planar-magnetic MTM array; six 3 × 5-inch woofers. Frequency response: 80Hz–20kHz (minimum 1.0 cu ft air volume). Sensitivity: 90dB (2.83V/1m). Maximum SPL: 116dB at 1m. Impedance: 4 ohms. Crossover: 600Hz. Dispersion (−6dB): 60° × 30°. Amplification: one channel. Dimensions: 51.7 × 5.52 × 3.43 in. Orientation: vertical or horizontal.
The P6i suits an owner or specifier who wants reference in-wall performance that stays out of sight — for a high-end music room, a media room or a dedicated cinema where the loudspeakers should be heard and not seen. Pricing is on application, reflecting its configurable, installation-specific nature.
Architectural loudspeakers of this class must be designed into the room — cavity, amplification, grille and finish all matter. We specify, supply and install Wisdom systems across the South, integrating them with amplification, processing and control. Speak to our team to discuss your project or arrange a demonstration.
