Description
Eliminate Floor and Ceiling Reflection
The Line Source design eliminates floor and ceiling reflection while distributing sound levels uniformly across the width of any room.
Power Over Distance
Line Source provides a much better power constituency than a point source. This is a great benefit when designing an entertainment system in large modern open-floor living spaces as well as multi-tier theaters.
In-Baffle
In-Wall
On-Wall
Eliminate Floor and Ceiling Reflection
Enhance Clarity
More Power Over Distance
Share Experience
Highly Detailed & Dynamic
(4) 24” Planar Magnetic Drivers
Covers 6 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration
CAB – Line Module : Custom Angle Bracket. Must specify angle degree needed when ordering – Ordered in pairs one pair per module needed (Line 4 will need three pairs)
Full Range Loudspeaker
96” Planar Magnetic Driver
(12) High Operating Woofers
Outboard Active Crossover
DSP Required
4-CH’s of Amplification Required

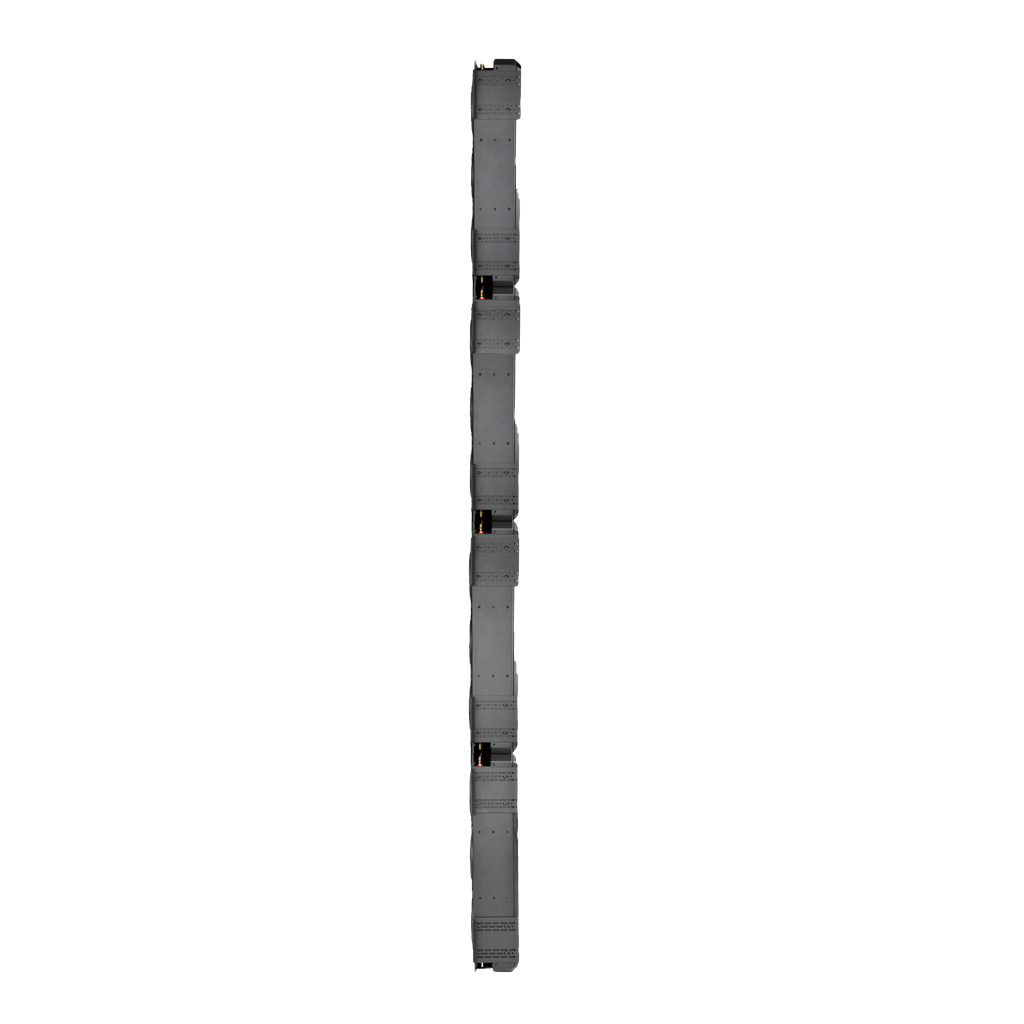

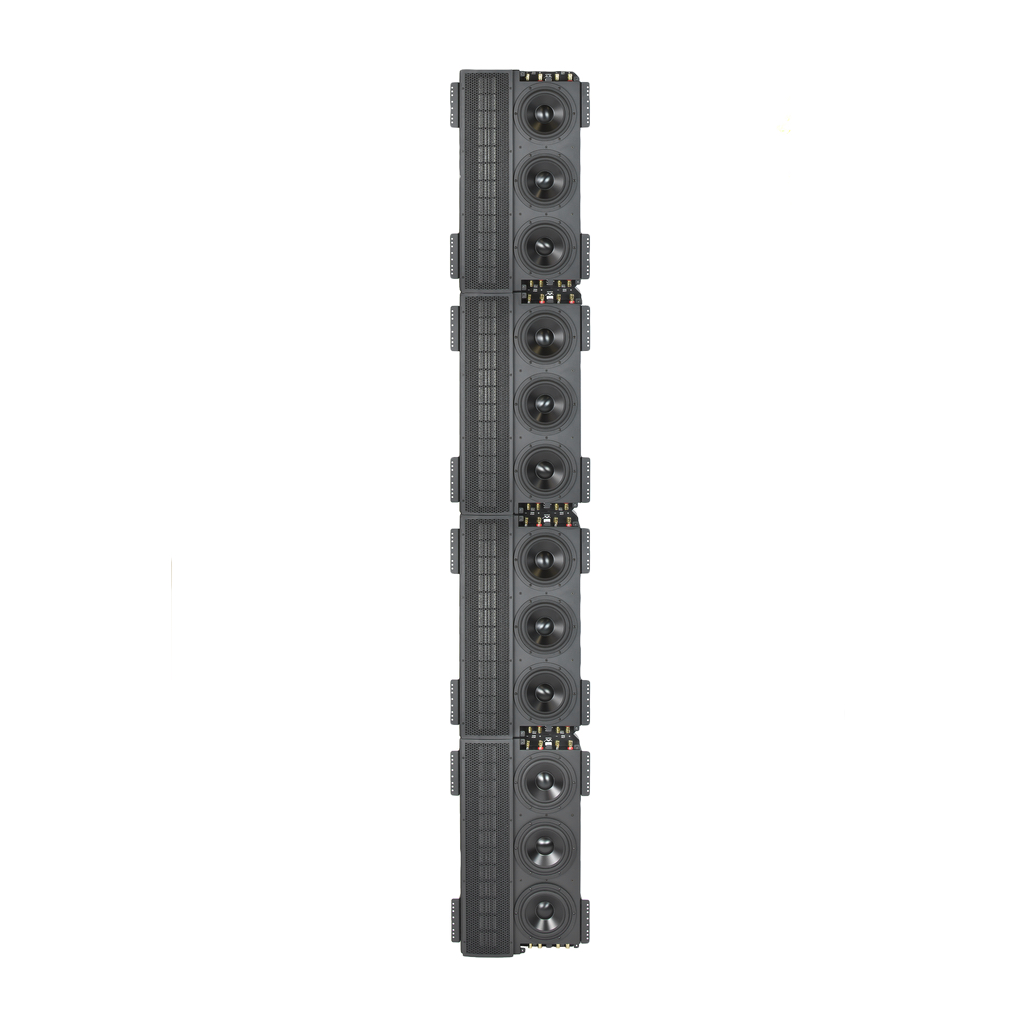

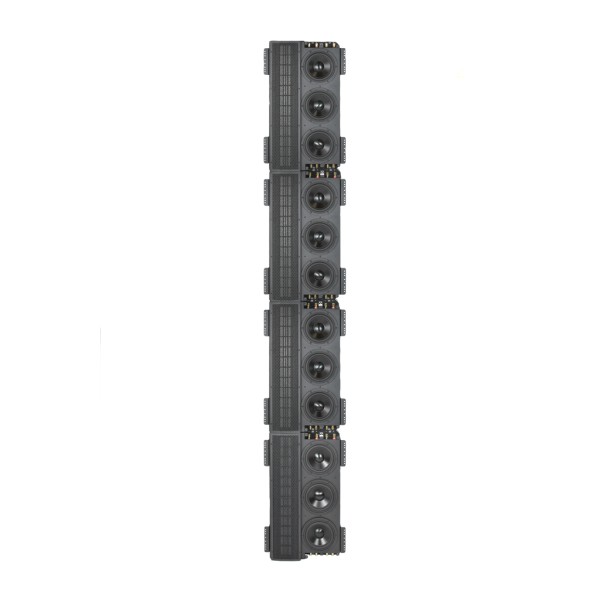

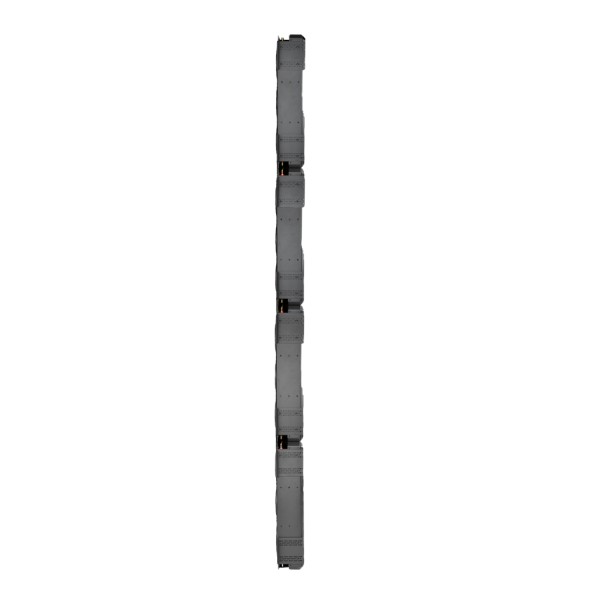

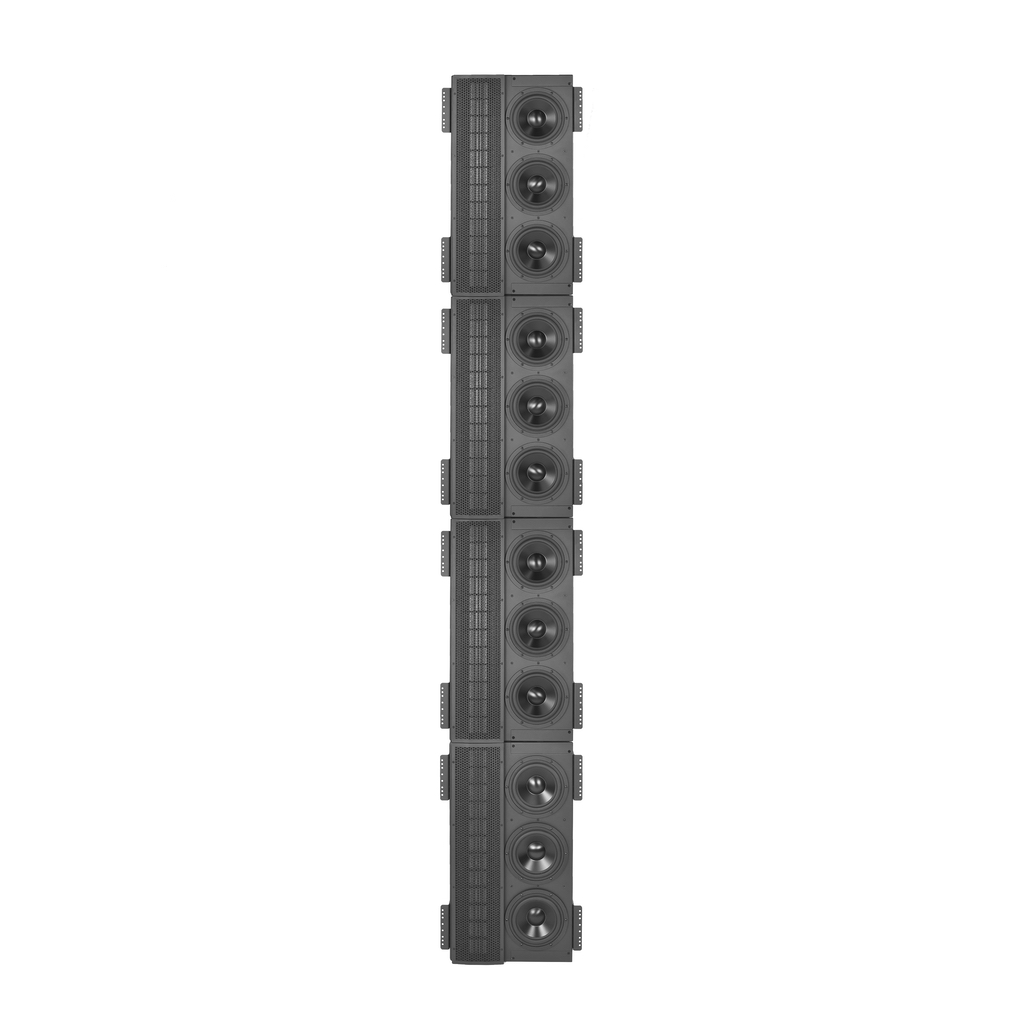

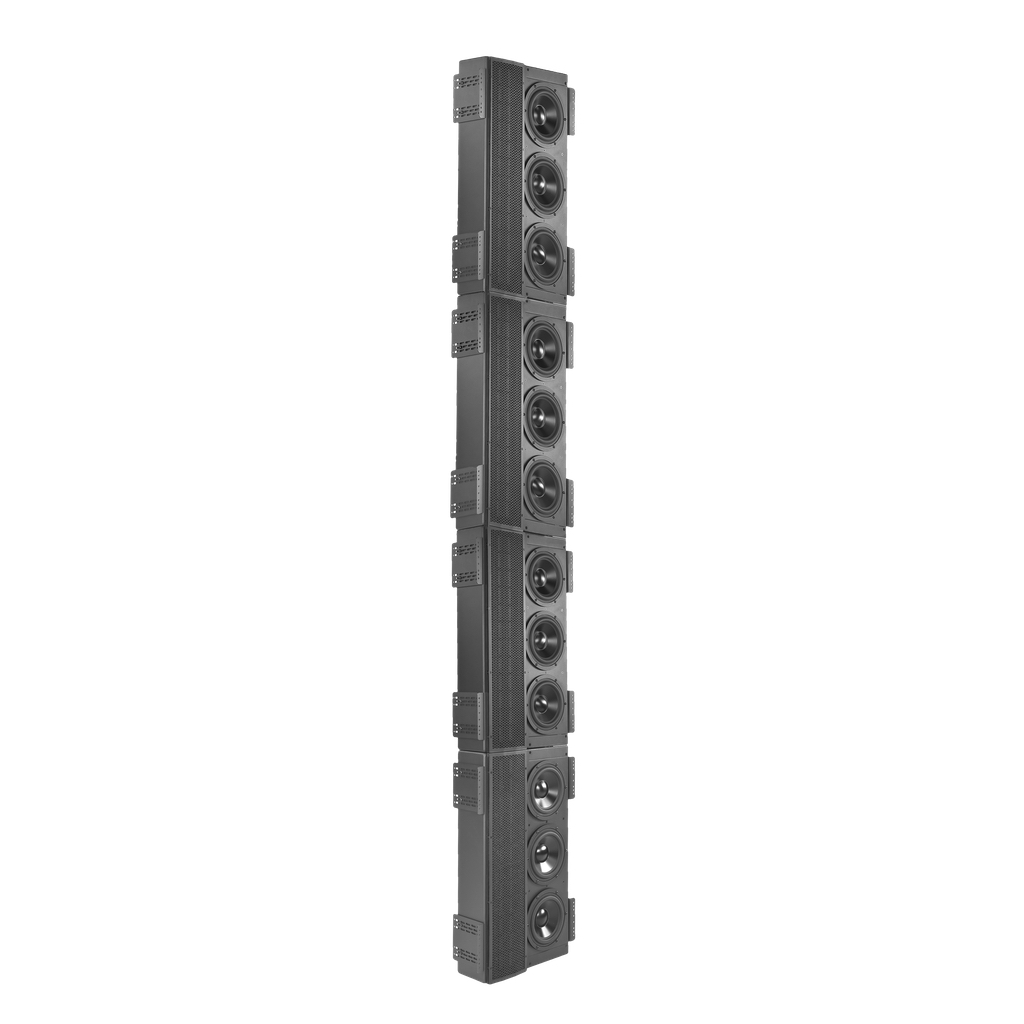

The Hidden Home view: Wisdom Sage Cinema Line 4
Wisdom builds the Sage Cinema Line 4 for private cinemas and serious media rooms, where it sits out of sight behind a projection screen or a fabric wall. Four of its 24 inch planar magnetic drivers form one column about 2.6 metres tall with high-output woofers beside them, and Wisdom quotes a response from 60 Hz.
Like the other Sage Cinema Line models it works as a line source. Wisdom designs it to keep sound levels even across the width of a room and to avoid reflections from the floor and ceiling, which matters most in a large open space or a cinema with tiered seats. It is an active design that needs four channels of amplification and an outboard crossover with DSP.
So it suits a dedicated cinema where the speakers must stay hidden. Custom angle brackets let each module lean towards the seats. Our award-winning cinema in Bath uses its smaller sibling, the Sage Cinema Line 2, and we design every Wisdom system into the room from the start. Call us and we will plan yours.
Sources: Wisdom Audio, “Sage Cinema Line 4”, the maker’s own page. Our project page for the award-winning cinema in Bath.
