Wisdom In Wall Point Source SAGE SERIES C20i

Description

Overview

The Sage Series C20i is a compact in-wall point-source loudspeaker from Wisdom Audio. It brings the brand’s thin-film planar-magnetic technology into a smaller, single-driver format intended to blend invisibly into a wall or ceiling while still reaching full range. The C20 family is flexible: as well as the in-wall C20i, it is offered as an on-wall C20m and a free-standing C20, all voiced to match so they can be mixed within one installation.

Design & build

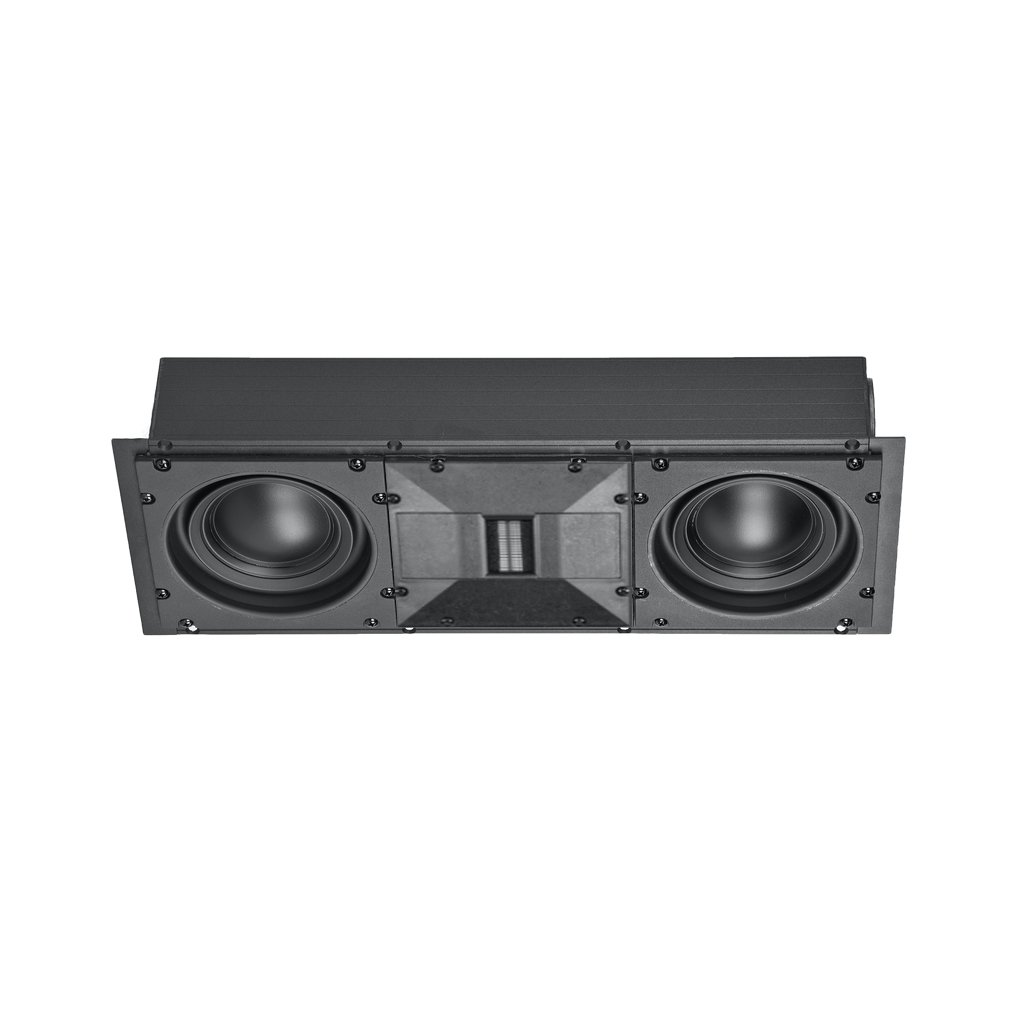

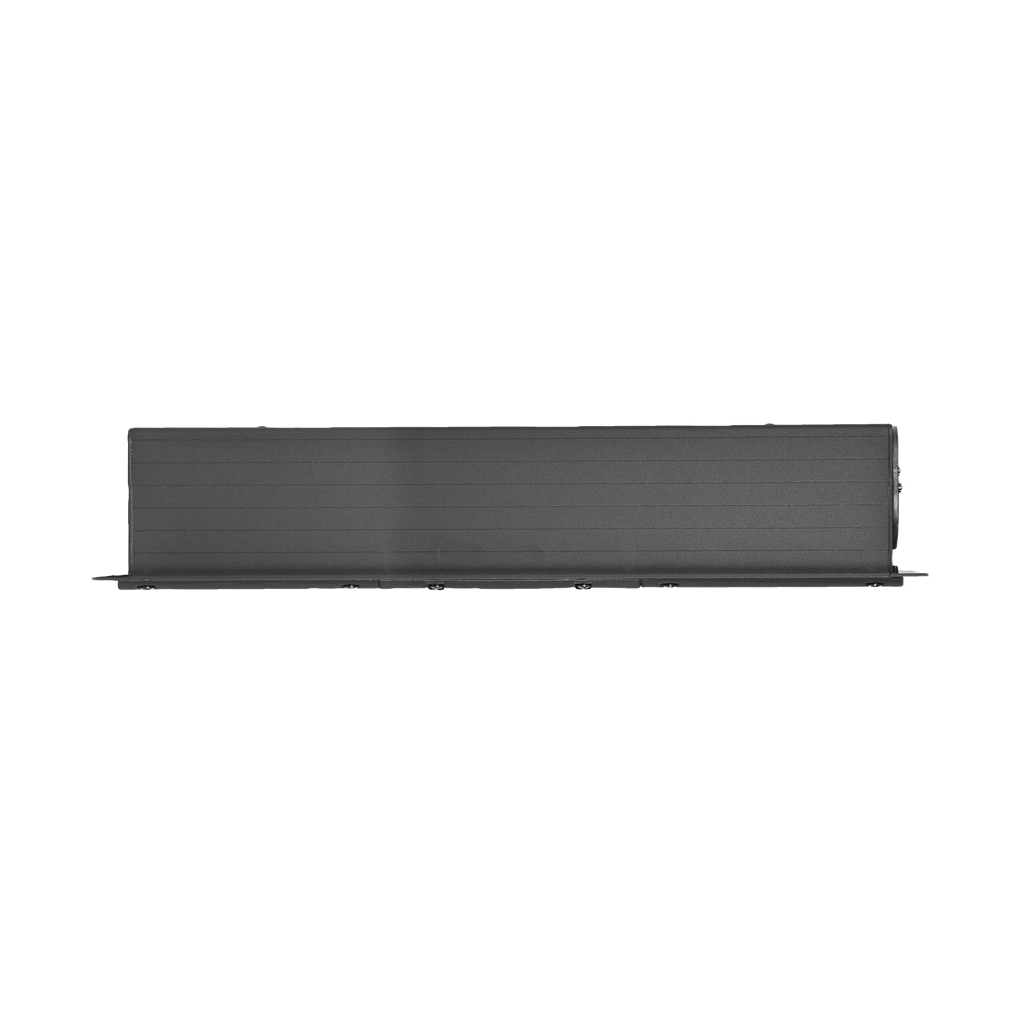

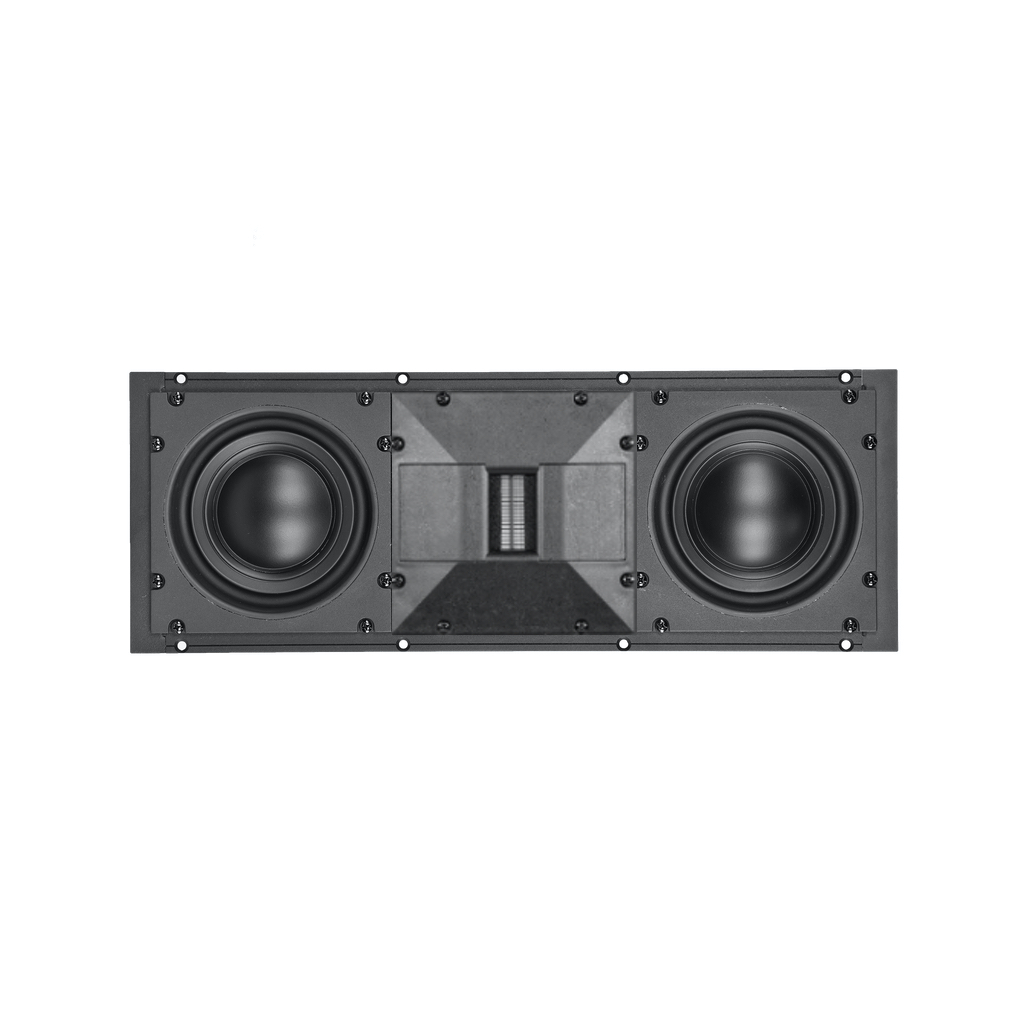

The C20i is slim and elegant, designed to sit flush behind a grille that can be finished to disappear into the room; optional custom-length grilles let it be tailored to the wall. As a point-source design it suits rooms where a full line-source array would be unnecessary — smaller listening spaces, secondary rooms, or supporting channels within a larger cinema where the main speakers are larger Sage models.

Sound & performance

Despite its size, the C20i is a genuine full-range loudspeaker rather than a background speaker. The planar-magnetic driver gives the open, low-distortion midrange and treble Wisdom is known for, while two high-output woofers provide the low end. Quoted frequency response is 40Hz–20kHz ±2dB relative to the target curve, holding to 40Hz–15kHz ±2dB even 30 degrees off axis — useful consistency across a spread of seats.

Key features

The driver complement is a single thin-film planar-magnetic driver covering five octaves, over two 6-inch high-output woofers. The planar film is lightweight PEEK, chosen for fast, low-mass acceleration and low distortion. As with the rest of the Sage line, it is designed to be colour-matched and hidden rather than displayed.

Technology

The C20i is an actively driven system: it requires an outboard active crossover with DSP and two channels of amplification, so the planar and woofer sections are each driven and equalised for the room. This is how Wisdom achieves full-range output from such a slim in-wall enclosure, and it is why setup and calibration are part of the installation rather than an afterthought.

Specifications

Type: in-wall point-source loudspeaker. Drivers: one thin-film planar-magnetic (five octaves) plus two 6-inch high-output woofers. Frequency response: 40Hz–20kHz ±2dB relative to target; 40Hz–15kHz ±2dB at 30° off axis. Impedance: planar 3 ohms, woofer 5 ohms. Sensitivity: 87dB / 2.83V / 1m (both sections). Continuous power handling: 200W. Weight: 21 lb (9.5kg). Dimensions: 8.22 × 19.8 × 3.8 in. Requires outboard active crossover, DSP and two channels of amplification.

Who it’s for

The C20i suits a listener or integrator who wants Wisdom’s planar sound in a smaller room, or who needs discreet full-range speakers that match larger Sage models elsewhere in a home cinema. It is a natural choice where architecture rules out a visible loudspeaker but performance must not be compromised.

Why buy from Hidden Home Technology

An active in-wall speaker of this kind is only as good as its installation. We specify, fit and calibrate Wisdom Audio systems across the South, matching the crossover, DSP and amplification to your room so the C20i performs as intended. Prices are on application — speak to our team to discuss the right configuration, or browse our speakers.
