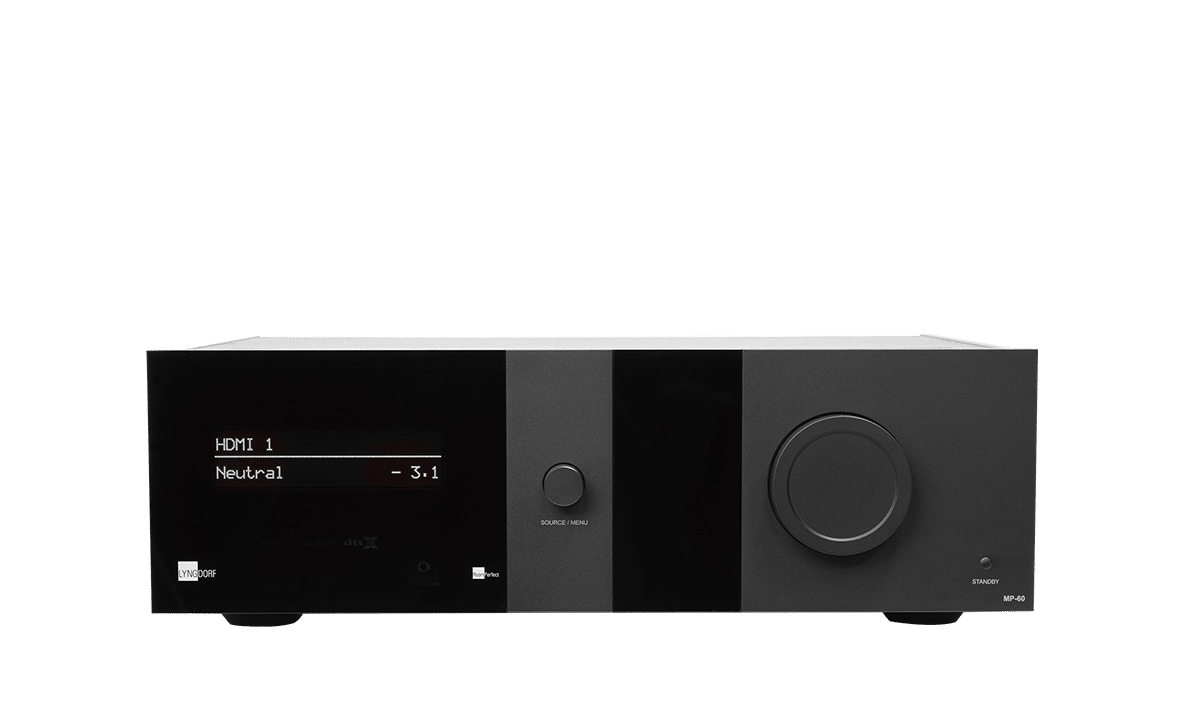

Lyngdorf MP-60 2.1 – AES3 DCI Input, Incl. Rack Mount, 4 RU

Description

Overview

This configuration of the Lyngdorf MP-60 2.1 adds the optional AES3 DCI input module to the flagship 16-channel surround processor. It is the version to specify when a digital cinema server — the same DCI-compliant equipment used in commercial theatres — is part of the plan, connected digitally without ever leaving the professional domain. The 4U rack-mounting kit is included.

The AES3 DCI input option

The fitted module provides a 16-channel DCI-compliant AES3 (AES/EBU) digital input on a DB-25 connector, accepting signals up to 32-bit/192kHz. In practice that means a private cinema running a DCI movie server can feed the MP-60 losslessly in the format cinema servers natively speak — a connection ordinary AV processors simply do not offer.

Sound & performance

Native 16-channel decoding covers Dolby Atmos®, DTS:X® Pro and AURO-3D®, with Dolby Surround, DTS Neural:X and AURO-MATIC® upmixing for everything else. Sixteen balanced XLR outputs feed the amplification, and the numbers are exemplary: ±0.5dB frequency response from 20Hz to 20kHz and no more than 0.005% distortion.

Key features

The HDMI 2.1 video section carries five inputs (one eARC) and two outputs with Dynamic Lip-Sync and Quick Media Switching. Alongside the DCI board sit an AES/EBU input, three coaxial and four optical S/PDIF inputs and USB audio, plus the XLR microphone input for RoomPerfect™ calibration. Channel mapping is configured through the built-in web interface.

Technology

RoomPerfect remains the MP-60’s defining advantage: it measures the loudspeakers in your actual room and corrects the system across the whole listening area, preserving the character of the speakers while removing the room’s. In a reference cinema fed by a DCI server, that correction is what turns impressive equipment into an accurate one.

Specifications

Native decoding: 16 channels — Dolby Atmos, DTS:X Pro, AURO-3D. Fitted option: 16-channel DCI-compliant AES3 digital input, DB-25, up to 32-bit/192kHz. Outputs: 16 × balanced XLR. HDMI: 5 in (1 × eARC), 2 out. Other digital inputs: AES/EBU, 3 × coaxial, 4 × optical, USB audio. Frequency response: ±0.5dB, 20Hz–20kHz. THD: 0.005% max. 4U rack mount included.

Who it’s for

Choose this version if your cinema includes — or will include — a DCI-compliant movie server or other professional digital source that should connect over multichannel AES3. If you need digital output as well, the combined DCI input and output configuration is listed separately.

Why buy from Hidden Home Technology

Cinema-server installations are specialist work: signal formats, channel mapping and calibration all have to be right. We design and install Lyngdorf-based reference cinemas across Bath, Bristol and the South, and we can demonstrate the MP-60 at our Basingstoke showroom. Talk to our team about your source equipment and we’ll confirm the correct I/O configuration and current pricing before you commit.
