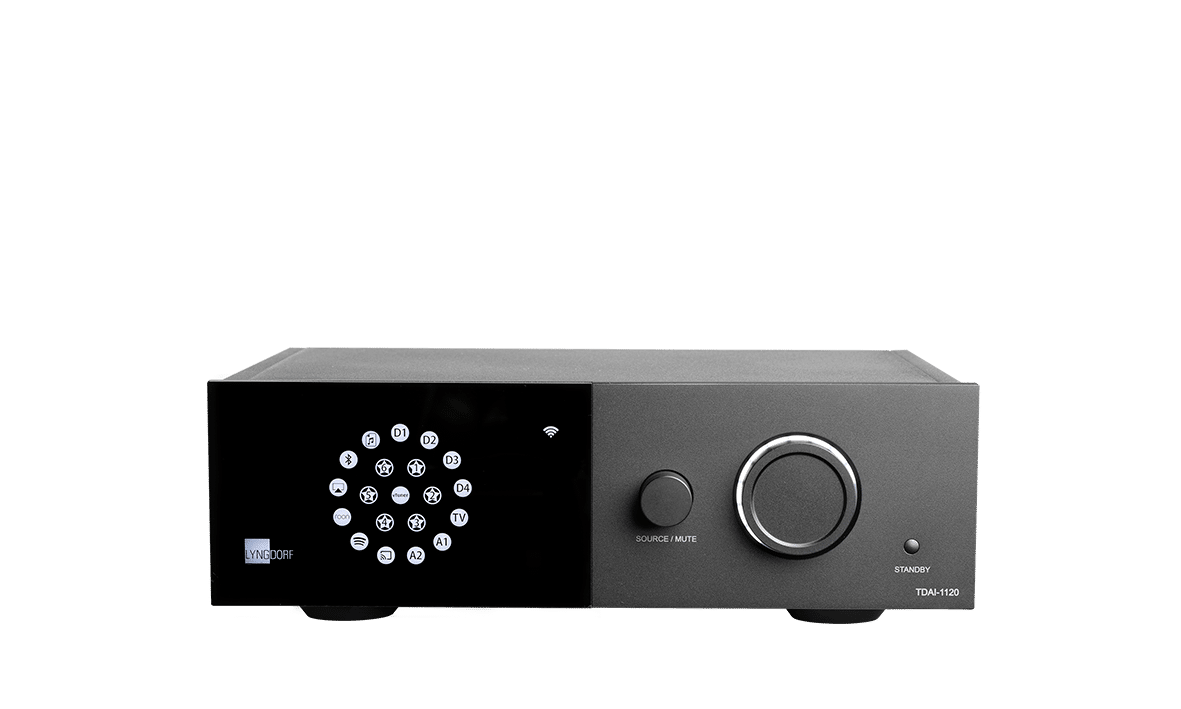

Lyngdorf TDAI-1120 Streaming Amplifier

Description

The Lyngdorf TDAI-1120 combines network music streaming, stereo amplification and RoomPerfect room correction in a compact 30cm-wide chassis. It is a practical starting point for a music-and-TV system where space matters: connect passive loudspeakers, your network and the sources you want to use.

Music, television and vinyl in one system

HDMI eARC connects a compatible television, while the built-in MM phono input accepts a suitable moving-magnet turntable cartridge. A separate RCA line input, two coaxial and two optical digital inputs cover other sources. You do not need an optional input board for the phono or TV connection.

RoomPerfect and speaker matching

RoomPerfect measures how the loudspeakers interact with the room and applies correction to the system. The supplied microphone, stand and cable support the calibration process. Speaker placement, listening distance and the volume you want still matter: correction is not a substitute for choosing suitable loudspeakers.

Key specifications

• Power: 2 × 60W RMS into 8 ohms; 2 × 120W RMS into 4 ohms.
• Inputs: HDMI eARC, 2 coaxial digital, 2 optical digital, MM phono RCA and RCA line input.
• Streaming includes Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready, Google Cast and AirPlay 2.
• Stereo RCA analogue output; Ethernet and Wi-Fi connectivity.
• Dimensions including connectors: 300 × 101 × 260mm (W × H × D).
• RoomPerfect microphone, stand and cable included; infrared remote control is an optional accessory.

TDAI-1120 or a larger Lyngdorf amplifier?

Choose the TDAI-1120 for its compact size and built-in TV and MM phono connections. The TDAI-2210 adds a colour touchscreen, more output power and a modular input option. The TDAI-3400 offers more power again and two optional input-module positions. The TDAI-1120 is not the modular-upgrade model.

Before you order

Tell us your loudspeaker model, room size and the sources you want to connect. We can help check whether the TDAI-1120 is the right fit and discuss RoomPerfect setup. Confirm delivery timing and any separately quoted installation requirements with us before ordering.

Manufacturer specifications and documentation.
