Overview

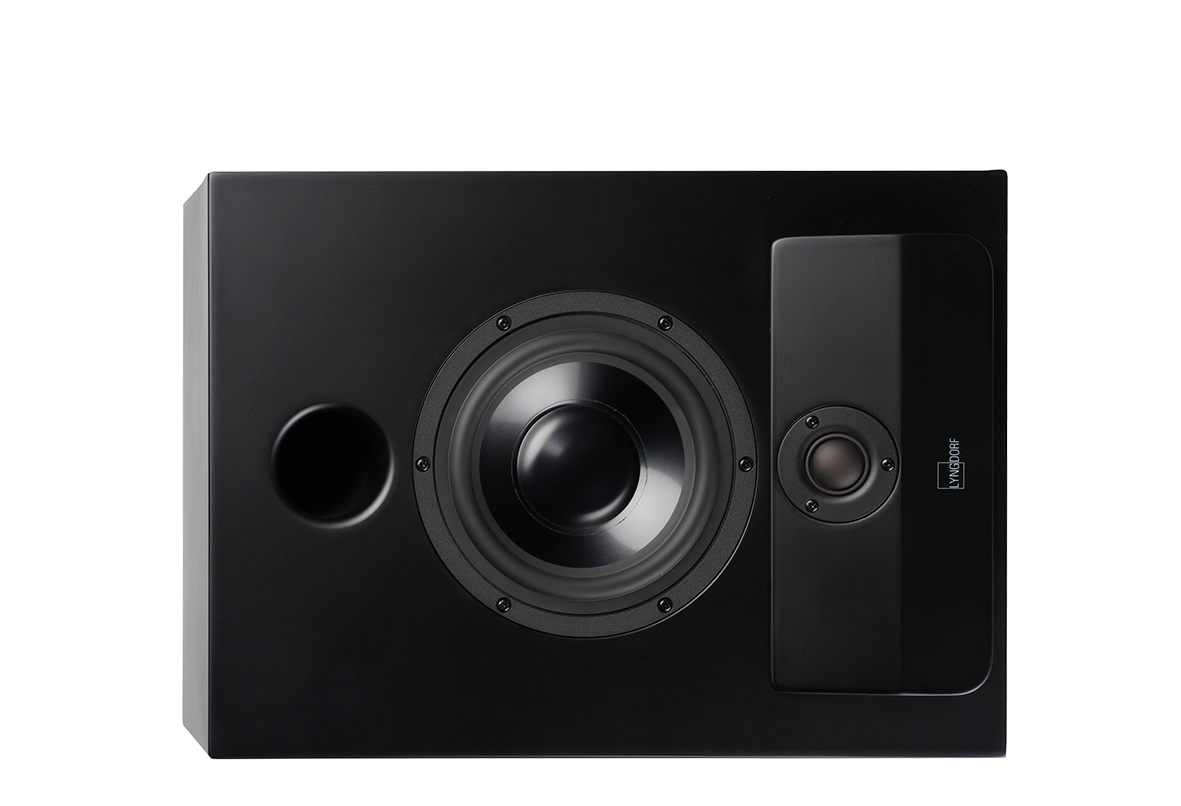

The CS-2 is a compact full-range loudspeaker from Lyngdorf, designed primarily to be built into furniture or a niche in the wall. It answers a common problem in considered interiors — how to get genuine sound quality where a freestanding or on-wall speaker would intrude — with a proper two-way design intended to be integrated out of sight. This example is finished in matte black.
Design & build
The CS-2 uses a full MDF, front-ported bass-reflex enclosure of 15 litres. It measures 42.0 × 30.7 × 20 cm (16.5 × 12.1 × 7.9 inches) and weighs 8.1 kg. Because the port is on the front, the speaker can be enclosed in cabinetry or a recess without choking the bass, which makes it genuinely practical to build in.
Sound & performance
The CS-2 is quoted with a frequency response of 42Hz–22,000Hz (−3dB), a sensitivity of 88dB (2.83V/1m) and a nominal 4-ohm impedance, handling up to 100W. For a speaker of its size and purpose, that is a full and even response — enough to serve as a capable main or supplementary loudspeaker in a well-integrated system.
Key features
The CS-2 is a two-way design with an angled tweeter to aid dispersion when the speaker is built in, and front-ported bass loading so it works within an enclosure. Its compact, defined dimensions make it straightforward to design into joinery or a wall recess, and it pairs naturally with Lyngdorf electronics and room correction.
Technology
The tweeter is a 1-inch textile soft dome with PTC protection, angled to improve off-axis response in built-in positions. The mid/bass driver is a 6.5-inch aluminium cone on a die-cast basket with a 35 mm voice coil and a vented magnet, chosen for control and low compression. Front porting keeps the bass tuning valid even when the cabinet is enclosed.
Specifications
Type: two-way full-range built-in loudspeaker. Tweeter: 1-inch textile soft dome, PTC protection, angled. Mid/bass: 6.5-inch aluminium cone, die-cast basket, 35 mm voice coil, vented magnet. Frequency response: 42Hz–22,000Hz (−3dB). Sensitivity: 88dB (2.83V/1m). Impedance: 4 ohms nominal. Power handling: 100W. Crossover: 2.2kHz. Enclosure: front-ported bass reflex, full MDF, 15 litres. Dimensions: 42.0 × 30.7 × 20 cm. Weight: 8.1 kg. Finish: matte black.
Who it’s for
The CS-2 is for the installation that demands sound quality without a visible speaker — built into furniture, joinery or a wall niche in a living space, second room or discreet system. It is a natural partner for Lyngdorf amplification and RoomPerfect room correction.
Why buy from Hidden Home Technology
Building a speaker into cabinetry or a wall recess is exactly the kind of integration we do — getting the position, enclosure and system right so the result sounds as good as it looks. We can supply the CS-2, advise on installation and pair it with Lyngdorf electronics across the South. Speak to our team to discuss your project.
The Hidden Home view: Lyngdorf CS-2
The CS-2 is the CS-1’s companion for shallower furniture. It uses the same midrange driver and tweeter in a taller box that is only 20 cm deep, and like the CS-1 it is designed for discreet placement inside lowboards, sideboards and TV units. Lyngdorf made it to fit the Danish Clic audio and video furniture with its fabric doors.
Lyngdorf says it needs no subwoofer, and it comes with rubber pads to stand on. The space inside the cabinet must take 30.7 by 42 by 20 cm, height by width by depth.
So it suits a media unit or sideboard too shallow for the CS-1, beneath a television or in a room where nothing should show. It is passive, and we would pair it with one of Lyngdorf’s streaming amplifiers such as the TDAI-1120.
Sources: Lyngdorf, the CS-2 pages of its catalogue.
