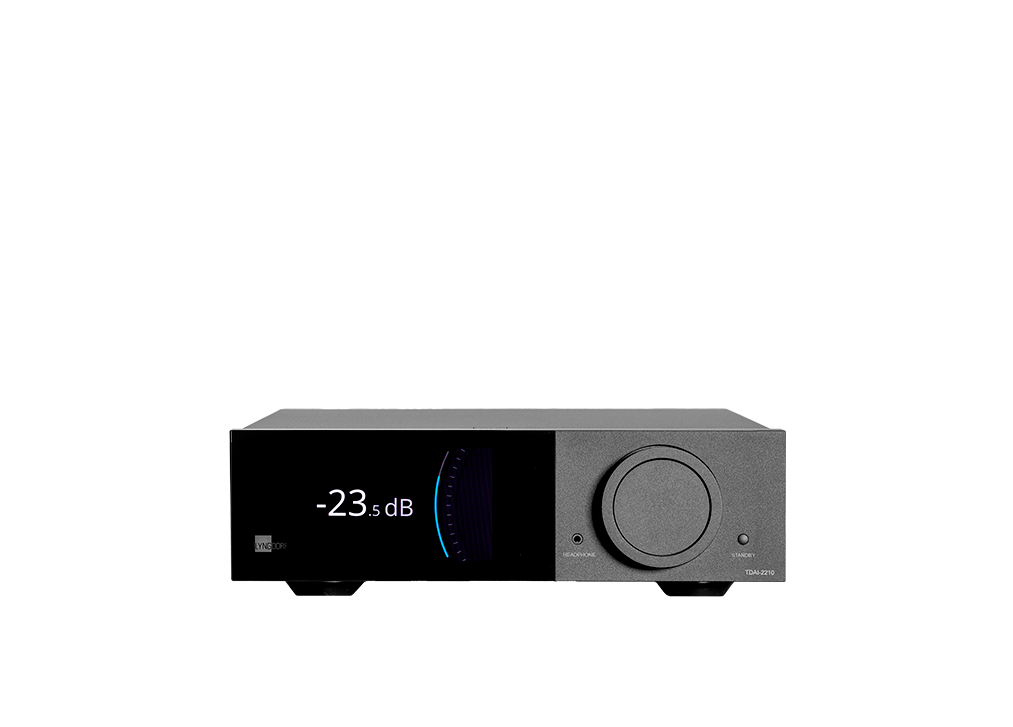

Lyngdorf TDAI-2210 HDMI – 2.1 Input (8K & HDR)

Description

Overview

This is the Lyngdorf TDAI-2210 streaming integrated amplifier fitted with the optional HDMI 2.1 board — the configuration for anyone who wants Lyngdorf’s fully digital amplification and RoomPerfect room correction to sit at the heart of a system that includes a television or projector. The added board brings HDMI video switching with support for high-resolution formats, on top of the amplifier’s full streaming and digital capability.

Design & build

The TDAI-2210 uses a module slot on the rear panel to tailor the amplifier to its installation. In this configuration that slot carries the HDMI 2.1 board, adding two HDMI inputs and an HDMI output alongside the base unit’s own connections. The result is a clean, single-box hub for both music and screen sources in a compact Lyngdorf chassis.

Sound & performance

The amplifier delivers 2 × 105W into 8 ohms and 2 × 210W into 4 ohms, with up to 35A per channel, and a frequency response of ±0.5dB from 20Hz–20kHz at 0.05% maximum distortion. RoomPerfect corrects the room’s acoustic problems in the digital domain, so film soundtracks and music alike benefit from tighter, more even bass and better imaging.

Key features

The optional HDMI 2.1 board adds two HDMI inputs and one HDMI output, with eARC/ARC and CEC integration, handling video passthrough for 8K and HDR sources while extracting the audio for the amplifier. The base unit adds an HDMI 2.1 eARC input, three coaxial and two optical digital inputs, USB-C and two RCA analogue inputs, plus full streaming: Roon Ready, Tidal/Spotify/Qobuz Connect, Chromecast, AirPlay, DLNA and Bluetooth.

Technology

Lyngdorf’s True Digital Amplification keeps the signal in the digital domain to the output stage. The HDMI 2.1 board carries the video through to the display while passing the audio to the amplifier for RoomPerfect correction, letting a single unit act as both a music streamer/amplifier and the switching hub for a television or projector.

Specifications

Type: streaming integrated amplifier with HDMI 2.1 board. Output: 2 × 105W into 8 ohms, 2 × 210W into 4 ohms. Maximum output current: 35A per channel. Frequency response: 20Hz–20kHz (±0.5dB). THD: 0.05% maximum. HDMI board: 2 × HDMI in, 1 × HDMI out, eARC/ARC, CEC. Base inputs: HDMI 2.1 eARC, 3 × coaxial, 2 × optical, USB-C, 2 × RCA. Streaming: Roon Ready, Tidal/Spotify/Qobuz Connect, Chromecast, AirPlay, DLNA, Bluetooth. RoomPerfect room correction.

Who it’s for

This configuration suits the listener who wants one elegant unit to serve both a music system and a screen — streaming and stereo amplification, with HDMI switching for a television or projector and RoomPerfect to tidy up the room — without a separate AV receiver.

Why buy from Hidden Home Technology

Bringing music and screen sources through one amplifier needs the right configuration and calibration. We can advise on the HDMI setup, carry out the RoomPerfect measurement and arrange delivery and installation across the South. Speak to our team to arrange a demonstration or to specify your TDAI-2210.
